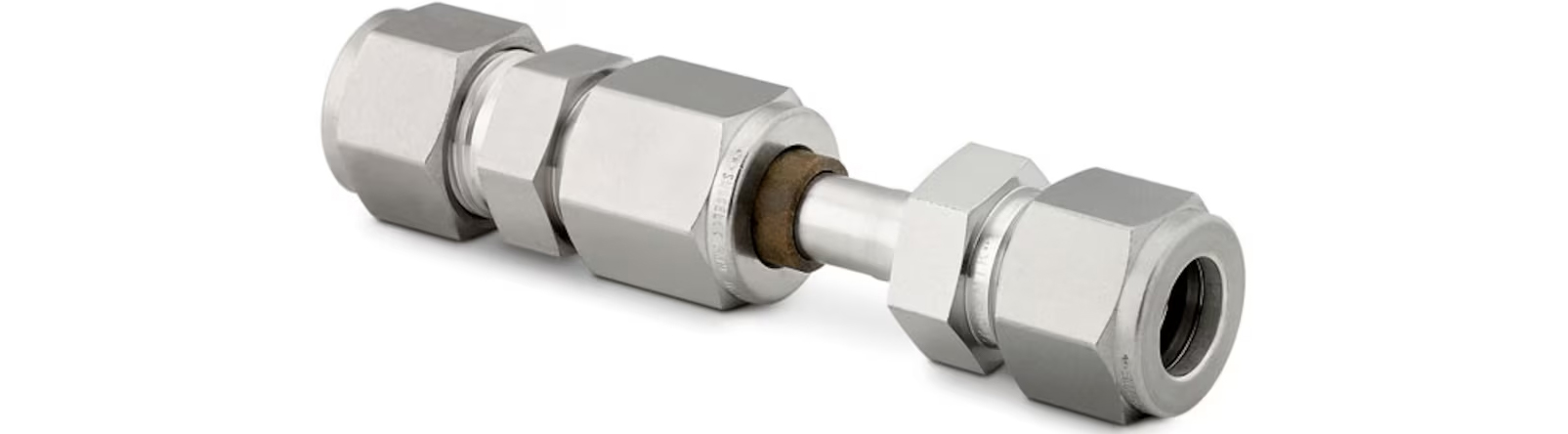

Titanium Dielectric Fitting
Welcome to Jay Steel, your relied on source for top rate industrial fittings. Our Dielectric Fittings are designed to save you galvanic corrosion and make sure the integrity of your piping structures. With a focal point on pleasant and reliability, our dielectric fittings are ideal for more than a few applications where specific metals are joined.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits of Dielectric Fittings from Jay Steel
- Corrosion Resistance: Prevents galvanic corrosion between distinctive metals, extending the lifespan of your structures.
- High Durability: Crafted from terrific substances to resist harsh environmental conditions.
- Safety: Reduces the threat of electrical shock and guarantees secure operation in diverse industrial applications.
- Easy Installation: Designed for seamless integration, simplifying the set up technique.
- Versatile Applications: Suitable for use in more than one industries, making sure dependable performance throughout one-of-a-kind environments.
Grades Available:
Our Dielectric Fittings are available in various grades to meet specific industry requirements. Here are the commonly used grades:
Grade | Material | Applications |
SS304 | Stainless Steel 304 | General industrial use, food processing |
SS316 | Stainless Steel 316 | Chemical, pharmaceutical, marine environments |
SS316L | Stainless Steel 316L | Medical devices, pharmaceutical applications |
Carbon Steel | High-strength carbon steel | Construction, oil and gas |
Alloy Steel | Various alloy compositions | High-temperature and pressure applications |
Types of Dielectric Fittings
- Dielectric Unions: Ideal for becoming a member of copper to steel pipes, making sure a secure and corrosion-resistant connection.
- Dielectric Nipples: Used to connect different varieties of metal pipes, preventing electrolysis and corrosion.
- Dielectric Flanges: Suitable for programs requiring a flanged connection, preserving electric isolation between distinctive metals.
- Custom Dielectric Fittings: Available upon request to fulfill specific utility wishes.
Industrial Applications
Our Dielectric Fittings are extensively used throughout various industries, ensuring the prevention of galvanic corrosion and retaining machine integrity:
- HVAC Systems: Ensuring corrosion-resistant connections between copper and metallic components.
- Plumbing: Preventing electrolysis in domestic and business water systems.
- Oil and Gas: Used in pipelines to prevent corrosion between special metal kinds.
- Chemical Processing: Ensuring secure and dependable connections in corrosive environments.
- Water Treatment: Maintaining the integrity of piping systems in water purification and distribution.
Testing and Quality Assurance
At Jay Steel, we prioritize satisfaction. Each Dielectric Fitting undergoes stringent trying out to ensure it meets industry standards and exceeds purchaser expectancies:
- Hydrostatic Testing: To affirm leak-proof overall performance under excessive pressure.
- Electrical Insulation Testing: To make sure effective isolation between multiple metals.
- Dimensional Inspection: To assure unique dimensions and fitting accuracy.
- Material Testing: To confirm the chemical composition and mechanical homes of the materials used.
Why Choose Jay Steel:
- Commitment to Quality: We adhere to the best best requirements, making sure our products meet or exceed enterprise benchmarks.
- Extensive Inventory: With a huge range of fittings to be had, we can meet diverse business desires directly.
- Expertise and Experience: With years of enjoyment, our team is equipped to offer the great answers for your necessities.
- Customer Support: Our committed customer service team is continually geared up to help you along with your queries and orders.
For reliable, durable, and tremendous Dielectric Fittings, trust Jay Steel. Explore our good sized variety of merchandise and discover why we’re the favored choice for industrial fittings. Contact us today to research extra or to place your order.
