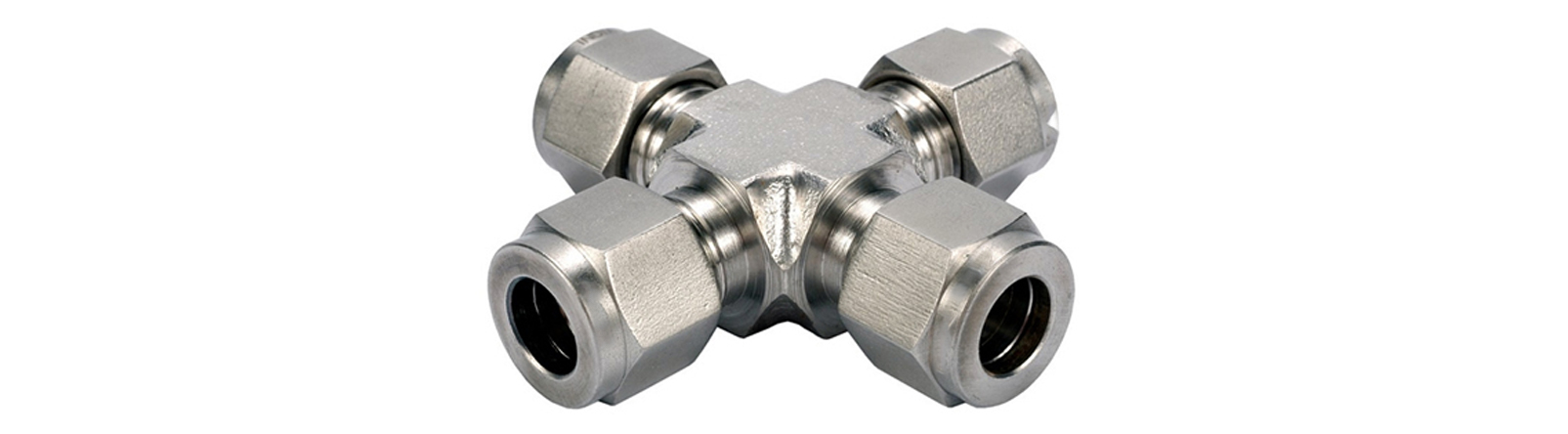

Stainless Steel Union Cross

Welcome to Jay Steel, the premier manufacturer of top-tier tube fittings. At Jay Steel, we pride ourselves on delivering superior products designed to meet the rigorous demands of various industries. Our Stainless Steel Union Cross is a testament to our commitment to quality and innovation. These fittings are essential for creating a four-way connection in piping systems, ensuring a secure and efficient setup. Whether you are involved in chemical processing, oil and gas, or any other industry that requires robust and reliable fittings, Jay Steel’s Stainless Steel Union Crosses are engineered to provide exceptional performance and durability. Discover why Jay Steel is the go-to choice for tube fittings around the globe.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Stainless Steel Union Crosses from Jay Steel provides numerous advantages:

Corrosion Resistance: Manufactured from high-grade stainless steel, these union tees provide excellent resistance to corrosion, making them ideal for use in harsh environments.
Durability: Designed to withstand high pressures and temperatures, our union tees ensure long-lasting performance and reliability.
Leak-Proof Connections: Precision engineering guarantees a tight, leak-proof seal, enhancing the safety and efficiency of your piping systems.
Versatility: Suitable for various tube and pipe materials, our union tees are versatile and adaptable to a wide range of applications.
Ease of Installation: Our fittings are designed for easy and quick installation, saving you time and effort.

Grades Available:

Jay Steel offers Stainless Steel Union Crosses in a variety of grades to meet diverse industrial requirements. Below are the specifications for each grade:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
304	18-20% Cr, 8-10.5% Ni	515	205	40
316	16-18% Cr, 10-14% Ni, 2-3% Mo	515	205	40
321	17-19% Cr, 9-12% Ni, 0.7% Ti	515	205	40
347	17-19% Cr, 9-13% Ni, 0.8% Nb	515	205	40
904L	19.0-23.0% Cr, 23.0-28.0% Ni, 4.0-5.0% Mo	690	220	35

Types of the Product:

Jay Steel provides a range of Stainless Steel Union Crosses to suit different applications:

Standard Union Cross: Ideal for general applications, offering reliable and secure connections.
Heavy-Duty Union Cross: Designed for high-pressure environments, providing enhanced durability and strength.
Compact Union Cross: Suitable for applications with space constraints, ensuring efficient performance in a smaller footprint.

Industrial Application:

Stainless Steel Union Crosses from Jay Steel are utilized across various industrial sectors, including:

Chemical Processing: Ensuring safe and reliable directional changes in corrosive environments.
Oil and Gas: Providing secure connections in pipelines and processing facilities, capable of withstanding high pressures and temperatures.
Pharmaceuticals: Maintaining sterile conditions and precise flow control in pharmaceutical manufacturing.
Food and Beverage: Ensuring hygiene and safety in food and beverage processing applications.
Marine Applications: Withstanding harsh marine environments with superior corrosion resistance.

Testing:

At Jay Steel, we ensure the quality and performance of our Stainless Steel Union Crosses through comprehensive testing procedures:

Material Testing: Verifying the use of high-grade stainless steel that meets industry standards.
Dimensional Inspection: Ensuring precise dimensions for accurate and secure fittings.
Pressure Testing: Confirming leak-proof performance under various pressure conditions.
Corrosion Testing: Assessing resistance to corrosion to ensure long-term durability.

Why Choose Jay Steel:

Commitment to Quality: We adhere to the highest quality standards, ensuring that our products consistently meet and exceed customer expectations.
Expertise and Experience: With extensive industry experience, we provide reliable and innovative solutions tailored to your specific needs.
Customer-Centric Approach: We prioritize customer satisfaction, offering personalized support and services to address your unique requirements.
Global Reach: As a leading exporter, we maintain a robust global supply chain, ensuring timely delivery and consistent product quality.
Competitive Pricing: We offer premium-quality products at competitive prices, ensuring excellent value for your investment.

Choose Jay Steel for your Stainless Steel Union Cross needs and experience unparalleled quality, reliability, and service. Trust us to deliver products that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations.
