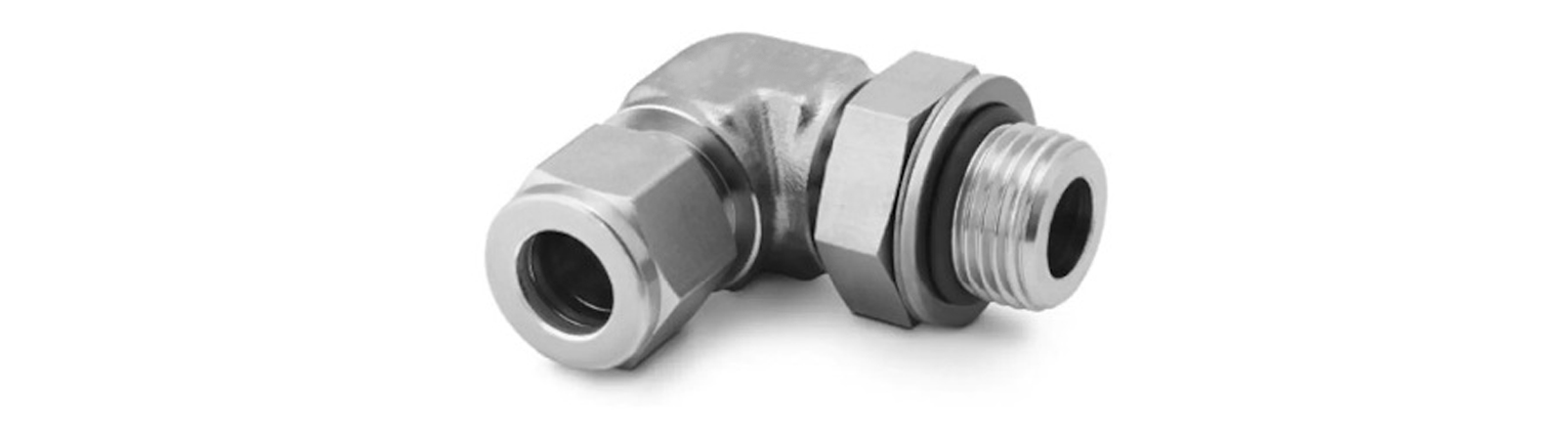

Stainless Steel Positionable Male Elbow

Welcome to Jay Steel, the foremost manufacturer of high-quality tube fittings. With a dedication to excellence and innovation, Jay Steel has established itself as a leader in the industry. Among our diverse range of products, the Stainless Steel Positionable Male Elbow stands out for its superior design and functionality. This fitting is engineered to facilitate secure and efficient directional changes in piping systems, with the added advantage of being positionable to accommodate various installation needs. At Jay Steel, we aim to exceed customer expectations by delivering products that combine reliability, precision, and unmatched quality.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Opting for Stainless Steel Positionable Male Elbows from Jay Steel offers numerous benefits:

Superior Corrosion Resistance : Constructed from high-grade stainless steel, our positionable male elbows provide excellent resistance to corrosion and rust, ensuring long-term durability even in harsh environments.
High Strength and Durability: Designed to withstand high pressures and temperatures, our positionable male elbows deliver robust performance and dependable service life in demanding conditions.
Leak-Proof Design: Precision engineering ensures a tight seal, preventing leaks and ensuring the integrity of your piping systems.
Adjustable Orientation: The positionable feature allows for easy adjustments during installation, providing greater flexibility and convenience.
Ease of Installation: Engineered for straightforward installation, our elbows reduce downtime and maintenance costs while ensuring secure connections.

Grades Available:

Jay Steel offers Stainless Steel Positionable Male Elbows in various grades to meet specific industry requirements. Below are the specifications for each grade:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
304	18-20% Cr, 8-10.5% Ni	515	205	40
316	16-18% Cr, 10-14% Ni, 2-3% Mo	515	205	40
321	17-19% Cr, 9-12% Ni, 0.7% Ti	515	205	40
347	17-19% Cr, 9-13% Ni, 0.8% Nb	515	205	40
904L	19.0-23.0% Cr, 23.0-28.0% Ni, 4.0-5.0% Mo	690	220	35

Types of the Product:

Jay Steel provides a variety of Stainless Steel Positionable Male Elbows to cater to diverse requirements:

Standard Positionable Male Elbow: Ideal for general applications, providing reliable and secure connections with adjustable orientation.
Heavy-Duty Positionable Male Elbow: Designed for high-pressure and demanding environments, offering enhanced durability and strength with the flexibility of positioning.
Compact Positionable Male Elbow: Suitable for applications with space constraints, delivering efficient and reliable performance in a smaller footprint with adjustable orientation.

Industrial Application:

Stainless Steel Positionable Male Elbows from Jay Steel are versatile and find extensive use in various industrial sectors, including:

Chemical Processing: Ensuring safe and reliable directional changes in corrosive environments with the flexibility of adjustable orientation.
Oil and Gas: Providing secure connections in pipelines and processing facilities, capable of withstanding high pressures and temperatures with adjustable positioning.
Pharmaceuticals: Maintaining sterile conditions and precise flow control in pharmaceutical manufacturing with the convenience of positionable fittings.
Food and Beverage: Ensuring hygiene and safety in food and beverage processing applications with the flexibility of adjustable orientation.
Marine Applications: Withstanding harsh marine environments with superior corrosion resistance and the added benefit of positionable fittings.

Testing:

At Jay Steel, we ensure the quality and performance of our Stainless Steel Positionable Male Elbows through rigorous testing procedures:

Material Testing: Ensuring the use of high-grade stainless steel that meets stringent industry standards.
Dimensional Inspection: Verifying precise dimensions for accurate fitting and secure connections.
Pressure Testing: Conducting pressure tests to confirm leak-proof performance under various conditions.
Corrosion Testing: Evaluating resistance to corrosion to ensure long-term durability in harsh environments.
Positional Integrity Testing: Ensuring that the adjustable feature maintains integrity and reliability under operational conditions.

Why Choose Jay Steel:

Commitment to Quality: We adhere to the highest quality standards, ensuring that our products consistently meet and exceed customer expectations.
Expertise and Experience: With extensive industry experience, we provide reliable and innovative solutions tailored to your specific needs.
Customer-Centric Approach: We prioritize customer satisfaction, offering personalized support and services to address your unique requirements.
Global Reach: As a leading exporter, we maintain a robust global supply chain, ensuring timely delivery and consistent product quality.
Competitive Pricing: We offer premium-quality products at competitive prices, ensuring excellent value for your investment.

Choose Jay Steel for your Stainless Steel Positionable Male Elbow needs and experience unparalleled quality, reliability, and service. Trust us to deliver products that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations.
