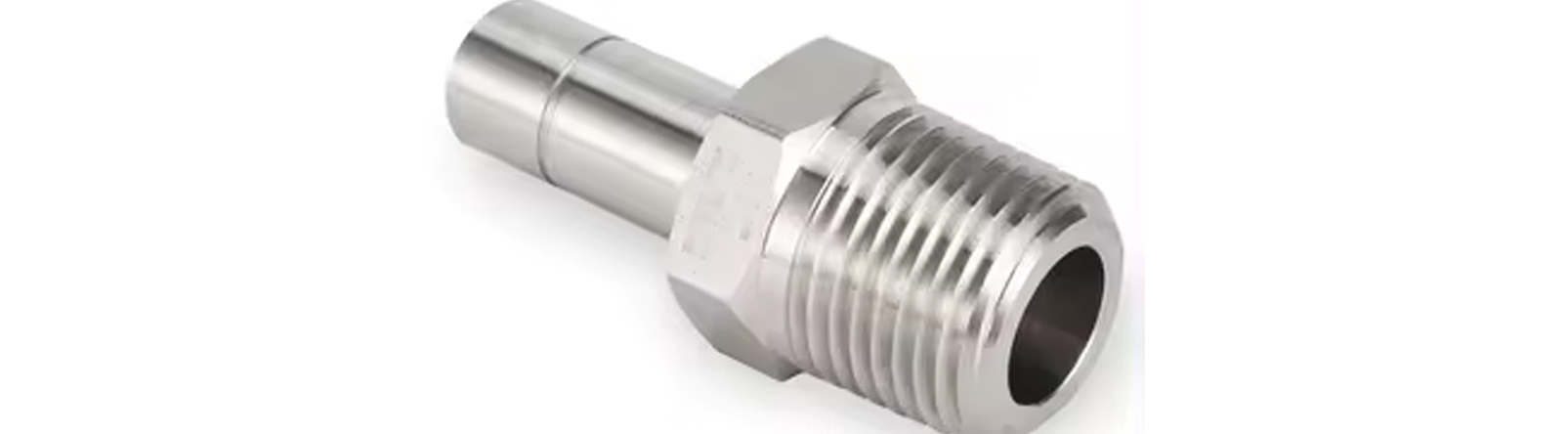

Stainless Steel Port Connector

Welcome to Jay Steel, a leading manufacturer of high-quality tube fittings. At Jay Steel, we pride ourselves on providing exceptional products that meet the rigorous demands of various industries. Our Stainless Steel Port Connectors are meticulously designed to ensure secure and reliable connections in your piping systems. These connectors are essential for creating leak-proof ports in a variety of applications, ranging from chemical processing to oil and gas, pharmaceuticals, and more. With a commitment to quality, innovation, and customer satisfaction, Jay Steel has established itself as a trusted name in the tube fittings industry. Explore our Stainless Steel Port Connectors to see how they can enhance your system’s performance and reliability.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Stainless Steel Port Connectors from Jay Steel comes with numerous advantages:

Corrosion Resistance: Made from high-quality stainless steel, our port connectors offer superior resistance to corrosion, ensuring longevity even in the harshest environments.
Durability: Designed to withstand high pressures and temperatures, our port connectors provide reliable and long-lasting performance.
Leak-Proof Seal:Precision engineering guarantees a tight, leak-proof seal, enhancing the safety and efficiency of your piping systems.
Versatility: Compatible with various pipe and tube materials, our port connectors are versatile and adaptable to numerous applications.
Ease of Installation: Our port connectors are designed for easy and quick installation, reducing downtime and labor costs.

Grades Available:

Jay Steel offers Stainless Steel Port Connectors in several grades to meet a wide range of industrial requirements. Below are the specifications for each grade:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
304	18-20% Cr, 8-10.5% Ni	515	205	40
316	16-18% Cr, 10-14% Ni, 2-3% Mo	515	205	40
321	17-19% Cr, 9-12% Ni, 0.7% Ti	515	205	40
347	17-19% Cr, 9-13% Ni, 0.8% Nb	515	205	40
904L	19.0-23.0% Cr, 23.0-28.0% Ni, 4.0-5.0% Mo	690	220	35

Types of the Product:

Jay Steel provides a variety of Stainless Steel Port Connectors to suit different applications:

Straight Port Connector: Ideal for creating straight connections in piping systems.
Elbow Port Connector: Designed for 90-degree connections, useful in compact spaces.
Tee Port Connector: Allows for branching connections, distributing flow in multiple directions.
Cross Port Connector: Used for creating four-way connections, facilitating complex piping arrangements.

Industrial Application:

Stainless Steel Port Connectors from Jay Steel are utilized across various industrial sectors, including:

Chemical Processing: Providing secure connections in systems handling corrosive materials.
Oil and Gas: Ensuring reliable port connections in pipelines and processing facilities.
Pharmaceuticals: Maintaining sterile conditions and preventing contamination in manufacturing processes.
Food and Beverage: Ensuring hygiene and safety in food and beverage processing applications.
Water Treatment: Facilitating secure connections in water and wastewater treatment plants.

Testing:

At Jay Steel, we ensure the quality and performance of our Stainless Steel Port Connectors through comprehensive testing procedures:

Material Testing: Verifying the use of high-grade stainless steel that meets industry standards.
Dimensional Inspection: Ensuring precise dimensions for accurate and secure fittings.
Pressure Testing: Confirming leak-proof performance under various pressure conditions.
Corrosion Testing: Assessing resistance to corrosion to ensure long-term durability.

Why Choose Jay Steel:

Commitment to Quality: We adhere to the highest quality standards, ensuring that our products consistently meet and exceed customer expectations.
Expertise and Experience: With extensive industry experience, we provide reliable and innovative solutions tailored to your specific needs.
Customer-Centric Approach: We prioritize customer satisfaction, offering personalized support and services to address your unique requirements.
Global Reach: As a leading exporter, we maintain a robust global supply chain, ensuring timely delivery and consistent product quality.
Competitive Pricing: We offer premium-quality products at competitive prices, ensuring excellent value for your investment.

Choose Jay Steel for your Stainless Steel Port Connector needs and experience unparalleled quality, reliability, and service. Trust us to deliver products that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations.
