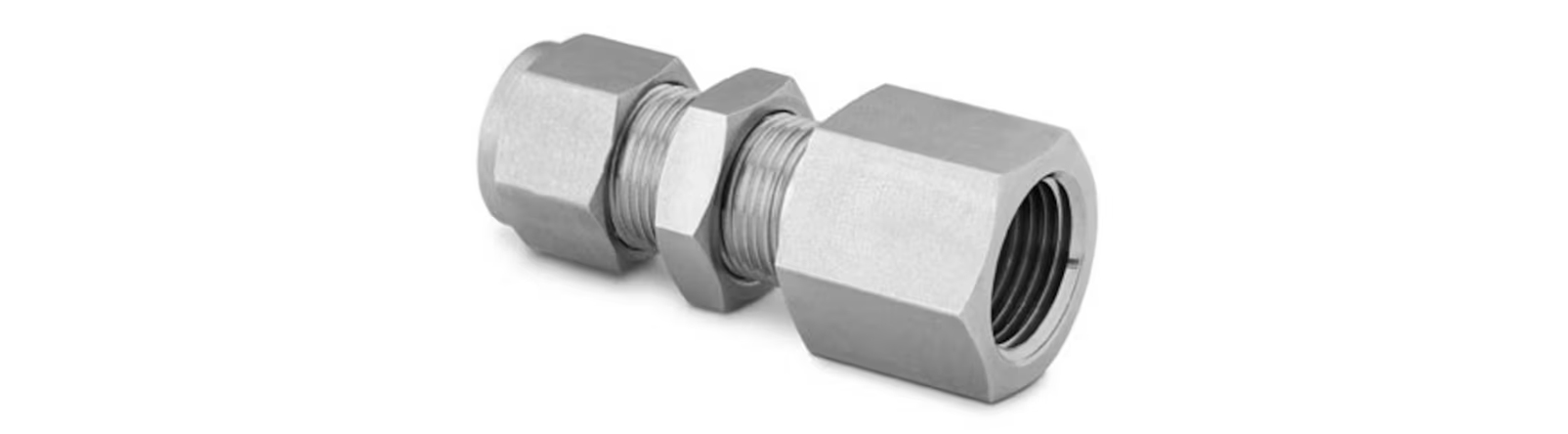

Stainless Steel Female Connector
Welcome to Jay Steel, your trusted partner in manufacturing and supplying premium-quality tube fittings. With a steadfast commitment to excellence and innovation, Jay Steel has established itself as a leader in providing reliable and durable piping solutions. Among our extensive range of products, the Stainless Steel Female Connector is a standout choice for various industrial applications. Engineered to the highest standards, our female connectors ensure secure and leak-proof connections, making them indispensable in demanding environments. At Jay Steel, we pride ourselves on delivering products that consistently meet and exceed customer expectations.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Address
- Shop No-1, 1st Parsiwada, Hira Building, Khetwadi Main Road, Near Alankar Cinema, Mumbai-400 004. India
Benefits:
Choosing Stainless Steel Female Connectors from Jay Steel offers numerous benefits:
- Superior Corrosion Resistance: Made from high-grade stainless steel, our connectors offer excellent resistance to corrosion and rust, ensuring long-term durability.
- High Strength and Durability: Designed to withstand high pressures and temperatures, our connectors provide robust performance and reliability in extreme conditions.
- Leak-Proof Design: Precision engineering ensures a tight, leak-proof seal, enhancing the efficiency and safety of your piping systems.
- Versatility: Suitable for a wide range of applications, our stainless steel male connectors are compatible with various tube and pipe materials.
- Easy Installation: Our connectors are designed for straightforward installation, reducing downtime and maintenance costs while ensuring secure connections.
Grades Available:
Jay Steel offers Stainless Steel Female Connectors in various grades to meet specific industry requirements. Below are the specifications for each grade:
| Grade | Material Composition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| 304 | 18-20% Cr, 8-10.5% Ni | 515 | 205 | 40 |
| 316 | 16-18% Cr, 10-14% Ni, 2-3% Mo | 515 | 205 | 40 |
| 321 | 17-19% Cr, 9-12% Ni, 0.7% Ti | 515 | 205 | 40 |
| 347 | 17-19% Cr, 9-13% Ni, 0.8% Nb | 515 | 205 | 40 |
| 904L | 19.0-23.0% Cr, 23.0-28.0% Ni, 4.0-5.0% Mo | 690 | 220 | 35 |
Types of the Product:
Jay Steel provides a variety of Stainless Steel Female Connectors to cater to diverse requirements:
- Standard Female Connector: Ideal for general applications, providing reliable and secure connections.
- Heavy-Duty Female Connector: Designed for high-pressure and demanding environments, offering enhanced durability and strength.
- Compact Female Connector: Suitable for applications with space constraints, providing efficient and reliable performance in a smaller footprint.
Industrial Application:
Stainless Steel Female Connectors from Jay Steel are versatile and find extensive use in various industrial sectors, including:
- Chemical Processing: Ensuring safe and reliable connections in corrosive environments.
- Oil and Gas: Providing secure connections in pipelines and processing facilities.
- Pharmaceuticals: Maintaining sterile and contamination-free environments in pharmaceutical production.
- Food and Beverage: Ensuring hygiene and safety in food and beverage processing applications.
- Marine Applications: Withstanding harsh marine environments with excellent corrosion resistance.
Testing:
At Jay Steel, we ensure the quality and performance of our Stainless Steel Female Connectors through rigorous testing procedures:
- Material Testing: Verifying the use of high-grade stainless steel that meets industry standards.
- Dimensional Inspection: Ensuring precise dimensions for accurate fitting and secure connections.
- Pressure Testing: Conducting pressure tests to confirm leak-proof performance under various conditions.
- Corrosion Testing: Evaluating resistance to corrosion to ensure long-term durability in harsh environments.
Why Choose Jay Steel:
- Commitment to Quality: We adhere to the highest quality standards, ensuring that our products consistently meet and exceed customer expectations.
- Expertise and Experience: With extensive industry experience, we provide reliable and innovative solutions tailored to your specific needs.
- Customer-Centric Approach: We prioritize customer satisfaction, offering personalized support and services to address your unique requirements.
- Global Reach: As a leading exporter, we maintain a robust global supply chain, ensuring timely delivery and consistent product quality.
- Competitive Pricing: We offer premium-quality products at competitive prices, ensuring excellent value for your investment.
Choose Jay Steel for your Stainless Steel Female Connector needs and experience unmatched quality, reliability, and service. Trust us to deliver products that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations
