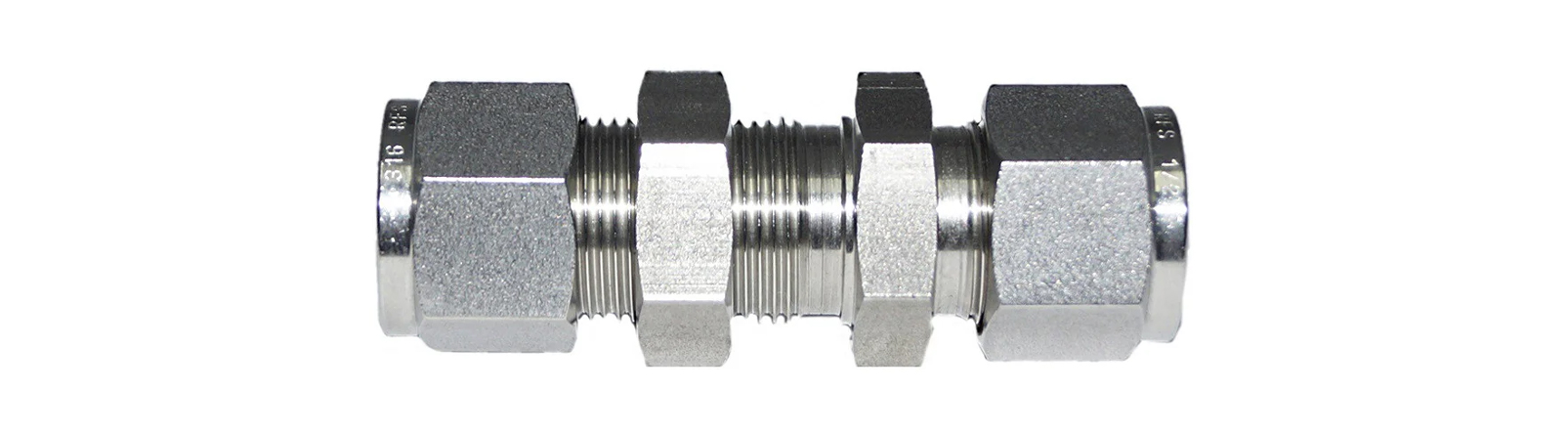

Stainless Steel Bulkhead Union

Welcome to Jay Steel, the foremost manufacturer of top-tier tube fittings. Our dedication to quality and innovation has positioned Jay Steel as a leader in the industry. Among our extensive product range, the Stainless Steel Bulkhead Union is a standout component, designed to provide secure and reliable connections in various industrial applications. Engineered to the highest standards, our bulkhead unions ensure leak-proof performance and exceptional durability. At Jay Steel, we are committed to delivering products that not only meet but exceed customer expectations, making us your trusted partner for all piping solutions.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Opting for Stainless Steel Bulkhead Unions from Jay Steel offers numerous advantages:

Superior Corrosion Resistance : Crafted from high-grade stainless steel, our bulkhead unions exhibit excellent resistance to corrosion and rust, ensuring long-term reliability even in harsh environments.
High Strength and Durability: Designed to withstand high pressures and temperatures, our bulkhead unions offer robust performance and dependability in demanding conditions.
Leak-Proof Design: Precision engineering ensures a tight seal, preventing leaks and ensuring the integrity of your piping systems.
Versatility: Our stainless steel unions are suitable for a wide range of applications, compatible with various tube and pipe materials.
Ease of Installation:Our connectors are designed for straightforward installation, reducing downtime and maintenance costs while ensuring secure connections.

Grades Available:

Jay Steel offers Stainless Steel Bulkhead Unions in a variety of grades to meet specific industry requirements. Below are the specifications for each grade:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
304	18-20% Cr, 8-10.5% Ni	515	205	40
316	16-18% Cr, 10-14% Ni, 2-3% Mo	515	205	40
321	17-19% Cr, 9-12% Ni, 0.7% Ti	515	205	40
347	17-19% Cr, 9-13% Ni, 0.8% Nb	515	205	40
904L	19.0-23.0% Cr, 23.0-28.0% Ni, 4.0-5.0% Mo	690	220	35

Types of the Product:

Jay Steel provides a variety of Stainless Steel Bulkhead Unions to cater to diverse requirements:

Standard Bulkhead Union: Ideal for general applications, providing reliable and secure connections.
Heavy-Duty Bulkhead Union: Designed for high-pressure and demanding environments, offering enhanced durability and strength.
Compact Bulkhead Union: Suitable for applications with space constraints, providing efficient and reliable performance in a smaller footprint.

Industrial Application:

Stainless Steel Bulkhead Unions from Jay Steel are versatile and find extensive use in various industrial sectors, including:

Chemical Processing: Essential for safe and reliable connections in corrosive environments.
Oil and Gas: Ensuring secure connections in pipelines and processing facilities, withstanding high pressures and temperatures.
Pharmaceuticals: Maintaining sterile conditions and precise flow control in pharmaceutical manufacturing.
Food and Beverage: Providing hygienic and corrosion-resistant solutions in food and beverage processing.
Marine Applications: Offering excellent corrosion resistance and durability in harsh marine environments.

Testing:

At Jay Steel, we ensure the quality and performance of our Stainless Steel Bulkhead Unions through rigorous testing procedures:

Material Testing: Ensuring the use of high-grade stainless steel that meets stringent industry standards.
Dimensional Inspection: Verifying precise dimensions for accurate fitting and secure connections.
Pressure Testing: Conducting pressure tests to confirm leak-proof performance under various conditions.
Corrosion Testing: Evaluating resistance to corrosion to ensure long-term durability in harsh environments.

Why Choose Jay Steel:

Commitment to Quality: We adhere to the highest quality standards, ensuring that our products consistently meet and exceed customer expectations.
Expertise and Experience: With extensive industry experience, we provide reliable and innovative solutions tailored to your specific needs.
Customer-Centric Approach: We prioritize customer satisfaction, offering personalized support and services to address your unique requirements.
Global Reach: As a leading exporter, we maintain a robust global supply chain, ensuring timely delivery and consistent product quality.
Competitive Pricing: We offer premium-quality products at competitive prices, ensuring excellent value for your investment.

Choose Jay Steel for your Stainless Steel Bulkhead Union needs and experience unparalleled quality, reliability, and service. Trust us to deliver products that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations.
