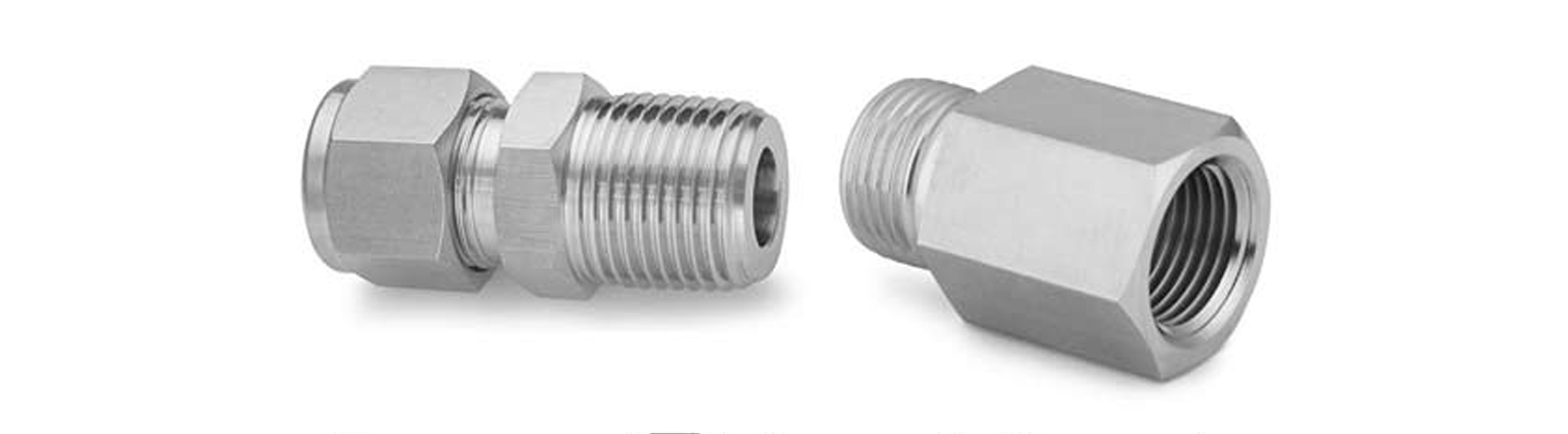

Monel Alloy 400 Union

Welcome to Jay Steel, the leading manufacturer of high-quality tube fittings. We are proud to present our Monel Alloy 400 Union, engineered to meet the stringent requirements of various industrial applications. Monel Alloy 400 is known for its exceptional corrosion resistance and outstanding mechanical properties, making it an ideal choice for challenging environments. At Jay Steel, we combine advanced manufacturing techniques with rigorous quality control to produce fittings that ensure durability and reliability. Our Monel Alloy 400 Unions are meticulously crafted to provide superior performance, ensuring secure and leak-proof connections across diverse industrial sectors.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Jay Steel’s Monel Alloy 400 Union offers numerous benefits:

Excellent Corrosion Resistance: Monel Alloy 400 provides superior resistance to a wide range of corrosive environments, including acids, alkalis, and seawater.
High Mechanical Strength: Designed to withstand high pressure and stress, ensuring robust and reliable performance in demanding conditions.
Thermal Stability: Maintains its mechanical properties over a wide temperature range, ensuring consistent performance.
Versatile Applications: Suitable for a broad spectrum of industrial environments, from chemical processing to marine applications.
Leak-Proof Connection: Ensures a secure and leak-proof connection, critical for high-pressure and high-temperature applications.

Grades Available:

Jay Steel offers Monel Alloy 400 Unions in the following grade specification:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Monel Alloy 400	63% Ni, 28-34% Cu, 2.5% Fe, 2% Mn	550	240	30

Types of the Product:

Our Monel Alloy 400 Unions are available in various types to meet different application needs:

Standard Union: Ideal for general industrial applications requiring a secure and reliable connection.
Reducing Union: Designed to connect pipes of different diameters, ensuring a seamless flow.
Bulkhead Union: Specifically designed for installation through bulkheads or panels, providing a secure and leak-proof connection.

Industrial Application:

Jay Steel’s Monel Alloy 400 Bulkhead Female Connectors are utilized in a wide range of industries, including:

Chemical Processing: Ideal for handling corrosive chemicals and aggressive environments.
Marine Engineering: Perfect for use in seawater and other marine conditions due to their excellent corrosion resistance.
Oil and Gas: Used in offshore and onshore drilling operations for reliable connections under extreme conditions.
Power Generation: Essential for high-temperature and high-pressure applications in power plants.
Pharmaceutical Manufacturing: Ensuring sterile and corrosion-free connections in sensitive production environments.

Testing:

To ensure the highest quality, Jay Steel performs rigorous testing on all Monel Alloy 400 Unions:

Chemical Analysis: Verification of material composition to ensure adherence to specifications.
Dimensional Inspection: Precise measurements to confirm exact dimensions and fit.
Mechanical Testing: Assessment of tensile strength, yield strength, and elongation for mechanical reliability.
Thermal Testing: Evaluation under various temperature conditions to ensure performance stability.
Corrosion Testing: Extensive testing to guarantee resistance to corrosive environments, ensuring long-term durability

Why Choose Jay Steel:

Superior Quality: Jay Steel is dedicated to producing tube fittings that meet the highest industry standards, ensuring exceptional performance and reliability.
Customized Solutions: We offer tailored solutions designed to meet your specific requirements, providing the perfect fit for your application.
Proven Durability: Our products are built to withstand the most challenging environments, ensuring long-lasting performance.
Global Reach: With a strong global presence, we ensure timely delivery and support to our customers worldwide.
Outstanding Customer Service: At Jay Steel, customer satisfaction is our priority, offering comprehensive service and support from selection to delivery.

Choose Jay Steel for your Monel Alloy 400 Unions and experience the benefits of top-quality products, reliable performance, and exceptional service. Trust us to provide fittings that meet your exact needs and deliver outstanding results in all your industrial applications.
