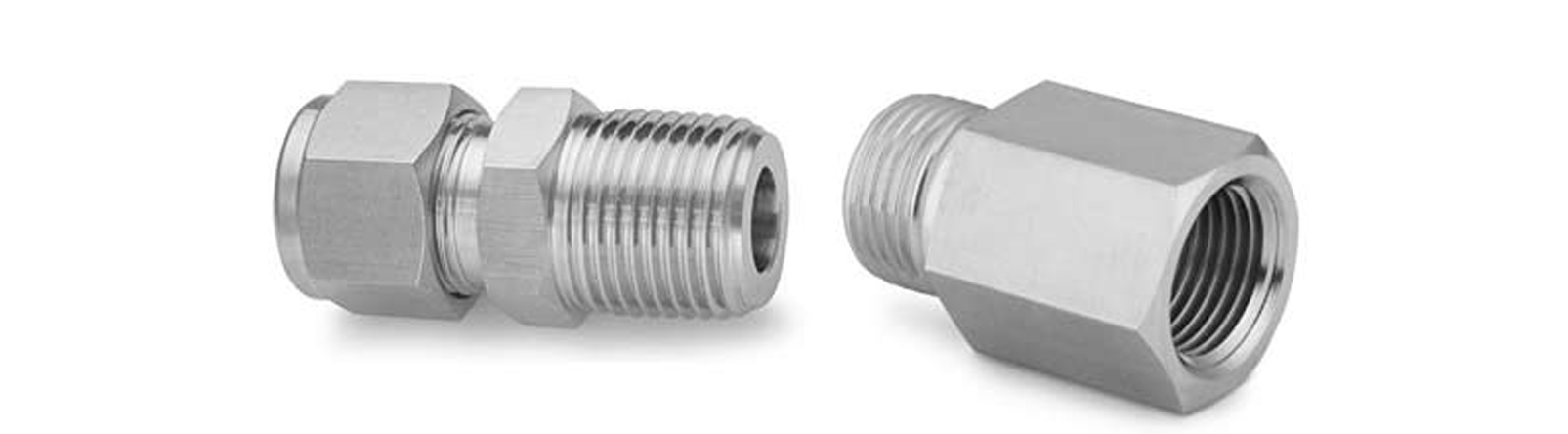

Monel Alloy 400 Thermocouple Connector

Welcome to Jay Steel, the foremost manufacturer of high-quality tube fittings, where we pride ourselves on delivering top-notch products to meet your industrial needs. Our Monel Alloy 400 Thermocouple Connectors are specifically designed to ensure accurate temperature measurements in the most demanding environments. Monel Alloy 400, known for its excellent corrosion resistance and high strength, is the material of choice for applications where reliability and precision are paramount. At Jay Steel, we combine superior materials with expert craftsmanship to provide connectors that stand up to the toughest conditions, ensuring your systems operate flawlessly.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Jay Steel’s Monel Alloy 400 Male Connectors offer numerous benefits:

Superior Corrosion Resistance: Monel Alloy 400 is highly resistant to a wide range of corrosive environments, including seawater, acids, and alkalis.
High Mechanical Strength:Our connectors maintain structural integrity under high stress and pressure.
Thermal Stability: Excellent performance at both high and low temperatures, ensuring accurate readings and reliable performance.
Durability: Long-lasting and capable of withstanding harsh industrial conditions.
Compatibility: Designed to work seamlessly with various thermocouple systems, ensuring easy integration and reliability.

Grades Available:

Jay Steel provides Monel Alloy 400 Thermocouple Connectors in the following grade specification:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Monel Alloy 400	63% Ni, 28-34% Cu, 2.5% Fe, 2% Mn	550	240	30

Types of the Product:

Our Monel Alloy 400 Thermocouple Connectors are available in various types to cater to different requirements:

Standard Thermocouple Connectors: Suitable for general use in a variety of industrial applications.
Miniature Thermocouple Connectors: Compact design for applications where space is limited.
High-Temperature Thermocouple Connectors: Built to withstand extremely high temperatures, ensuring accurate readings.
Custom Thermocouple Connectors: Tailored designs to meet specific application needs and specifications.

Industrial Application:

Jay Steel’s Monel Alloy 400 Thermocouple Connectors are utilized in a wide array of industries, including:

Petrochemical Industry: Ideal for measuring temperatures in corrosive chemical environments.
Marine Applications: Perfect for use in seawater and other marine conditions due to their excellent corrosion resistance.
Aerospace Industry: Used in aircraft and spacecraft to monitor and control critical temperature readings.
Power Generation: Essential in power plants for monitoring temperatures in steam and water systems.
Pharmaceutical Industry: Used in manufacturing processes requiring precise temperature control to ensure product quality.

Testing:

To guarantee the highest quality, Jay Steel performs comprehensive testing on all Monel Alloy 400 Thermocouple Connectors:

Chemical Analysis: Verification of material composition to ensure conformity with industry standards.
Dimensional Inspection: Accurate measurements to ensure precise dimensions and fit.
Mechanical Testing: Assessment of tensile strength, yield strength, and elongation to confirm mechanical properties.
Thermal Testing: Evaluation under various temperature conditions to ensure reliability and accuracy.
Corrosion Testing: Rigorous testing to ensure resistance to corrosive environments, ensuring longevity and performance.

Why Choose Jay Steel:

Unmatched Quality: Jay Steel is dedicated to producing tube fittings that meet the highest industry standards, ensuring top performance and reliability.
Tailored Solutions: We offer custom solutions designed to meet your specific needs, providing the perfect fit for your application.
Proven Durability: Our products are built to withstand the most demanding environments, ensuring long-term durability.
Global Reach: With a strong global presence, we ensure timely delivery and support to our customers worldwide.
Exceptional Customer Service: At Jay Steel, we prioritize customer satisfaction, offering comprehensive service and support from selection to delivery.

Choose Jay Steel for your Monel Alloy 400 Thermocouple Connectors and benefit from superior quality, reliability, and service. Trust us to provide fittings that meet your exact requirements and deliver outstanding performance in all your industrial applications.
