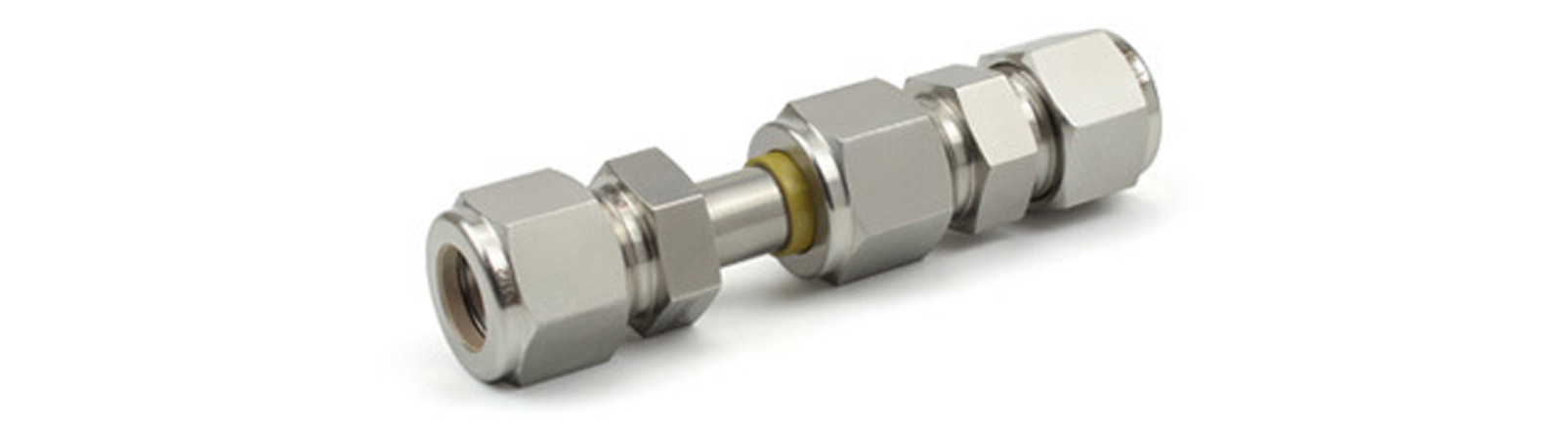

Monel Alloy 400 Dielectric Fitting

Welcome to Jay Steel, the premier manufacturer of high-quality tube fittings. We are proud to present our Monel Alloy 400 Dielectric Fitting, a critical component designed for superior performance in environments where electrical isolation is essential. Monel Alloy 400, a nickel-copper alloy, is highly acclaimed for its outstanding corrosion resistance, excellent mechanical properties, and reliable performance in harsh conditions. At Jay Steel, we ensure each dielectric fitting meets stringent quality standards, providing you with a durable and efficient solution for your industrial needs.

Our Monel Alloy 400 Dielectric Fitting is specifically engineered to prevent galvanic corrosion between dissimilar metals, ensuring the integrity and longevity of your piping systems. Whether your application involves chemical processing, marine engineering, or oil and gas operations, Jay Steel’s commitment to excellence guarantees that our dielectric fittings will deliver consistent and dependable results. Trust Jay Steel for top-quality tube fittings designed to meet your specific requirements.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Jay Steel’s Monel Alloy 400 Dielectric Fitting offers numerous advantages:

Exceptional Corrosion Resistance: Ideal for use in corrosive environments, preventing deterioration and ensuring long-term performance.
Electrical Isolation: Effectively prevents galvanic corrosion between dissimilar metals, protecting your piping systems.
High Mechanical Strength: Capable of withstanding high-pressure and high-stress conditions, ensuring secure and reliable connections.
Versatile Applications: Suitable for a wide range of industrial uses due to its robust design and material properties.
Durable and Long-Lasting: Reduces maintenance needs and extends product lifespan, providing cost-efficiency over time.

Grades Available:

Jay Steel offers Monel Alloy 400 Dielectric Fittings in the following grade specification:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Monel Alloy 400	63% Ni, 28-34% Cu, 2.5% Fe, 2% Mn	550	240	30

Types of the Product:

Our Monel Alloy 400 Dielectric Fittings are available in various configurations to meet diverse application needs, including:

Dielectric Unions
Dielectric Flanges
Dielectric Couplings
Dielectric Bushings

Industrial Application:

Jay Steel’s Monel Alloy 400 Dielectric Fittings are utilized across multiple industries due to their exceptional properties:

Chemical Processing: Resistant to corrosive chemicals, ensuring long-lasting performance in harsh environments.
Marine Engineering: Provides durability against seawater and marine atmospheres, preventing galvanic corrosion.
Oil and Gas: Designed to handle high-pressure and corrosive conditions reliably, ensuring the integrity of your systems.
Power Generation: Ensures reliable electrical isolation in high-temperature and high-stress environments.

Testing:

To guarantee the highest quality and performance, Jay Steel conducts comprehensive testing on all our products. Our testing procedures include:

Chemical Analysis: Ensuring the material composition meets the specified standards.
Dimensional Inspection: Verifying precise measurements for a perfect fit.
Mechanical Testing: Assessing tensile and yield strengths for durability.
Electrical Testing: Ensuring effective electrical isolation to prevent galvanic corrosion.

Why Choose Jay Steel:

Jay Steel is the trusted choice for tube fittings for several compelling reasons:

Unmatched Quality: We adhere to the highest standards of quality, ensuring each product performs exceptionally.
Expertise and Innovation: Our extensive experience and technical knowledge enable us to provide innovative solutions tailored to your needs.
Customer Commitment: We prioritize customer satisfaction by offering superior products and exceptional service.
Global Reach: With a vast network and international presence, Jay Steel efficiently delivers products and support worldwide.

Choose Jay Steel for your Monel Alloy 400 Dielectric Fitting needs and experience the superior quality and performance that sets us apart. Contact us today to learn more about our products and how we can support your industrial requirements.
