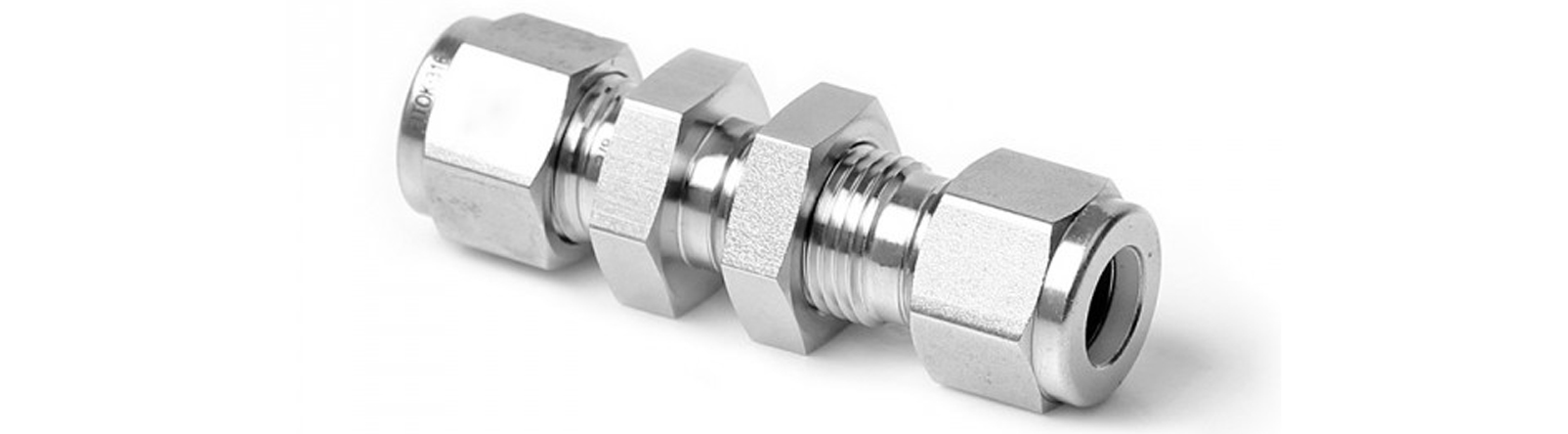

Monel Alloy 400 Bulkhead Male Connector

Welcome to Jay Steel, your premier source for high-quality tube fittings. As a leading manufacturer in the industry, Jay Steel is dedicated to providing products that meet the highest standards of performance and reliability. Our Monel Alloy 400 Bulkhead Male Connectors are expertly crafted to deliver exceptional durability and corrosion resistance, making them ideal for demanding industrial applications. Whether you need fittings for harsh marine environments, chemical processing, or any other challenging conditions, Jay Steel ensures top-notch quality and unparalleled performance. Trust Jay Steel for all your tube fitting needs and experience superior quality and service.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Jay Steel’s Monel Alloy 400 Male Connectors offer numerous benefits:

Exceptional Corrosion Resistance: Monel Alloy 400 is renowned for its resistance to a variety of corrosive environments, including seawater and acidic conditions.
High Mechanical Strength: These connectors boast robust mechanical properties, ensuring reliable performance under extreme conditions.
Thermal Stability: Suitable for applications involving high temperatures, maintaining integrity and performance.
Leak-Free Connections: Engineered to provide secure and leak-free connections, ensuring the reliability of fluid and gas flow systems.
Versatile Applications: Ideal for a wide range of industrial uses due to their adaptability to different environments and conditions.

Grades Available:

Jay Steel offers Monel Alloy 400 Bulkhead Male Connectors in the following grade specification:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Monel Alloy 400	63% Ni, 28-34% Cu, 2.5% Fe, 2% Mn	550	240	30

Types of the Product:

Our Monel Alloy 400 Bulkhead Male Connectors are available in various configurations to meet diverse needs:

Standard Bulkhead Male Connectors: Designed for secure connections through panels or walls in piping systems.
Bulkhead Male Adapter Connectors: Ideal for transitioning between different pipe sizes or thread types through a bulkhead.
High-Pressure Bulkhead Male Connectors: Engineered for applications involving high-pressure environments.
Custom Bulkhead Male Connectors: Tailored solutions to meet specific application requirements.

Industrial Application:

Jay Steel’s Monel Alloy 400 Bulkhead Male Connectors are widely used across various industries, including:

Marine Industry: Highly resistant to seawater corrosion, making them perfect for marine and offshore applications.
Chemical Processing: Suitable for handling corrosive chemicals and acids in processing plants.
Oil and Gas: Used in refineries, pipelines, and offshore platforms due to their high strength and corrosion resistance.
Power Generation: Ideal for steam and water distribution systems in power plants.
Aerospace: Utilized in aerospace components for their lightweight yet durable properties.

Testing:

To ensure the highest quality, Jay Steel conducts rigorous testing on all Monel Alloy 400 Bulkhead Male Connectors:

Material Analysis: Verification of chemical composition to meet industry standards.
Dimensional Inspection: Precision measurements to ensure exact dimensions and tolerances.
Pressure Testing: Evaluation under high-pressure conditions to confirm strength and leak-free performance.

Why Choose Jay Steel:

Unmatched Quality: Jay Steel is committed to delivering tube fittings that meet the most stringent industry standards.
Custom Solutions: We provide tailored solutions to meet your specific requirements, ensuring the perfect fit for your application.
Proven Reliability: Our products are engineered for dependable performance in even the most challenging conditions.
Global Reach: With a strong international presence, we ensure timely delivery and support to customers worldwide.
Exceptional Customer Service: At Jay Steel, customer satisfaction is our top priority. We offer dedicated service and support at every step of your purchase journey.

Choose Jay Steel for your Monel Alloy 400 Bulkhead Male Connectors and experience superior quality, reliability, and service. Trust us to provide the fittings that meet your exact specifications and deliver outstanding performance in your industrial applications.
