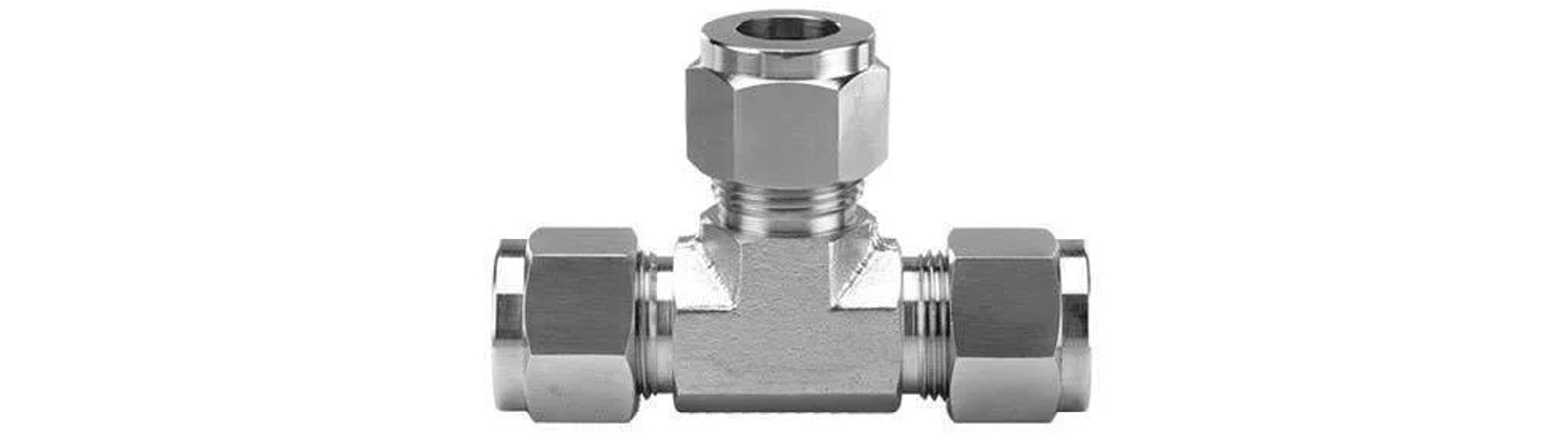

Inconel Alloy 600/625 Union Tee

Welcome to Jay Steel, your trusted partner in high-quality tube fittings. As a leading manufacturer, we are proud to offer our Inconel Alloy 600/625 Union Tee, designed to meet the rigorous demands of various industrial applications. These union tees are crafted from premium Inconel alloys, known for their exceptional resistance to high temperatures, corrosion, and mechanical stress. This makes them an ideal choice for industries where reliability and performance are paramount.

At Jay Steel, we prioritize quality and precision, ensuring that each Inconel Alloy 600/625 Union Tee delivers unparalleled performance. Our fittings are engineered to provide robust connections in systems exposed to harsh conditions, ensuring safety and efficiency. Trust Jay Steel to supply you with the most durable and reliable tube fittings in the market, tailored to meet your specific needs.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Jay Steel’s Inconel Alloy 600/625 Union Tee comes with several key benefits:

Exceptional Heat Resistance: Maintains integrity and performance in extreme temperatures.
Superior Corrosion Resistance: Withstands corrosive environments, extending the lifespan of the fittings.
High Mechanical Strength: Capable of enduring high pressures and mechanical loads.
Versatility: Suitable for a wide range of applications across various industries.
Cost-Effective: Reduces maintenance costs and downtime due to its durability and longevity.

Grades Available:

Jay Steel provides Inconel Alloy 600/625 Union Tee fittings in the following grade specifications:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Inconel Alloy 600	72% Ni, 14-17% Cr, 6-10% Fe	655	310	40
Inconel Alloy 625	58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe	827	414	30

Types of the Product:

Our Inconel Alloy 600/625 Union Tee fittings are available in multiple configurations to cater to diverse industrial requirements:

Standard Union Tee
Custom Union Tee

Industrial Application:

Jay Steel’s Inconel Alloy 600/625 Union Tee fittings are utilized across a wide range of industries due to their robust properties:

Chemical Processing: Ideal for use in environments with high temperatures and corrosive chemicals.
Aerospace: Suitable for high-stress and high-temperature applications.
Power Generation: Reliable in high-pressure and high-heat conditions.
Oil and Gas: Durable in corrosive and extreme environments.
Marine Engineering: Excellent resistance to seawater corrosion.

Testing:

To ensure the highest quality and performance, Jay Steel conducts comprehensive testing on all our products. Our tavesting procedures include:

Chemical Analysis: Verifying the material composition meets the specified standards.
Dimensional Inspection: Ensuring precise measurements for a perfect fit.
Mechanical Testing: Assessing tensile and yield strengths for durability.
Non-Destructive Testing (NDT): Ensuring product integrity and performance without causing damage.

Why Choose Jay Steel:

Jay Steel stands out as the preferred choice for tube fittings due to our commitment to excellence:

Unmatched Quality: We adhere to the highest standards to ensure superior product performance.
Expertise and Innovation: Our extensive experience and technical knowledge drive our ability to provide innovative solutions.
Customer Commitment: We prioritize customer satisfaction by offering exceptional products and outstanding service.
Global Reach: Our extensive network and international presence ensure efficient delivery and support worldwide.

Choose Jay Steel for your Inconel Alloy 600/625 Union Tee fitting needs and experience the quality and reliability that define our products. Contact us today to learn more about how we can meet your industrial requirements.
