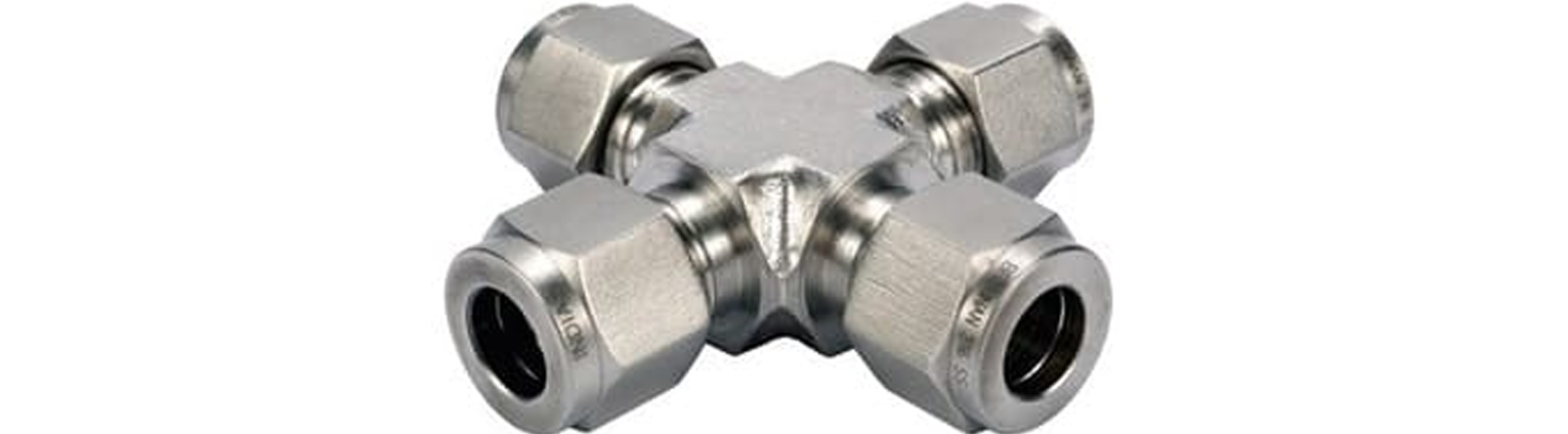

Inconel Alloy 600/625 Union Cross

Welcome to Jay Steel, the industry leader in manufacturing high-quality tube fittings. Our Inconel Alloy 600/625 Union Cross fittings are meticulously designed to meet the most demanding industrial requirements. Known for their exceptional resistance to high temperatures, corrosion, and mechanical stress, these fittings are the ideal choice for applications that demand superior performance and reliability. Jay Steel is committed to delivering top-notch products that ensure safety and efficiency in your operations.

Inconel Alloy 600/625 Union Cross fittings from Jay Steel offer unparalleled durability and robustness, making them suitable for a wide range of industrial applications. Our fittings are crafted with precision, ensuring a secure and leak-proof connection in your piping systems. Trust Jay Steel to provide you with the best tube fittings that stand the test of time and harsh environments.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Jay Steel’s Inconel Alloy 600/625 Union Cross fittings comes with numerous advantages

Exceptional Heat Resistance: Capable of withstanding extreme temperatures, ensuring reliable performance in high-heat environments.
Superior Corrosion Resistance: Highly resistant to oxidation and various corrosive environments, extending the lifespan of the connectors.
High Strength and Durability: Maintains structural integrity under high pressure and mechanical stress.
Versatile Applications:Suitable for a wide range of industrial uses due to its robust material properties
Cost Efficiency: Reduced maintenance needs and extended service life translate to significant cost savings.

Grades Available:

Jay Steel offers Inconel Alloy 600/625 Union Cross fittings in the following grades:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Inconel Alloy 600	72% Ni, 14-17% Cr, 6-10% Fe	655	310	40
Inconel Alloy 625	58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe	827	414	30

Types of the Product:

Our Inconel Alloy 600/625 Union Cross fittings are available in various configurations to meet your specific needs:

Standard Union Cross
Custom Union Cross

Industrial Application:

Jay Steel’s Inconel Alloy 600/625 Union Cross fittings are widely used across various industries due to their excellent properties:

Chemical Processing: Ideal for environments with high temperatures and corrosive chemicals.
Aerospace: Suitable for high-stress and high-temperature applications.
Power Generation: Reliable in high-pressure and high-heat conditions.
Oil and Gas: Durable in corrosive and extreme environments.
Marine Engineering: Excellent resistance to seawater corrosion.

Testing:

To ensure the highest quality, Jay Steel subjects all products to rigorous testing procedures, including:

Chemical Analysis: Verification of material composition.
Dimensional Inspection: Ensuring precise measurements and adherence to specifications.
Mechanical Testing: Assessing tensile and yield strengths.
Non-Destructive Testing (NDT): Checking for material integrity without causing damage.

Why Choose Jay Steel:

Jay Steel stands out as the preferred choice for tube fittings due to our unwavering commitment to excellence:

Unmatched Quality: We adhere to the highest standards to ensure superior product performance.
Expertise and Innovation: Our extensive experience and technical knowledge drive our ability to provide innovative solutions.
Customer Commitment: We prioritize customer satisfaction by offering exceptional products and outstanding service.
Global Reach: Our extensive network and international presence ensure efficient delivery and support worldwide.

Choose Jay Steel for your Inconel Alloy 600/625 Union Cross fitting needs and experience the quality and reliability that define our products. Contact us today to learn more about how we can meet your industrial requirements.
