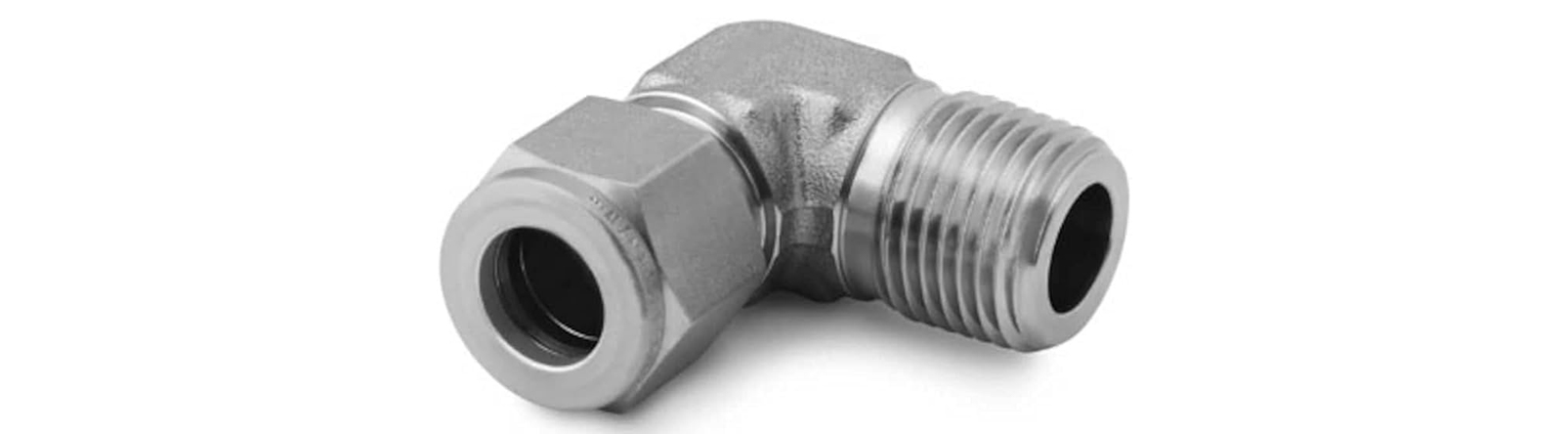

Inconel Alloy 600/625 Positionable Male Elbow
Welcome to Jay Steel, the premier manufacturer of high-quality tube fittings. Our Inconel Alloy 600/625 Positionable Male Elbow fittings are designed to deliver superior performance in the most demanding industrial environments. Known for their excellent resistance to high temperatures, corrosion, and mechanical stress, Inconel alloys are the preferred choice for critical applications. At Jay Steel, we are committed to providing fittings that meet and exceed industry standards, ensuring reliability and longevity for your systems.
Jay Steel’s Inconel Alloy 600/625 Positionable Male Elbow fittings are engineered to meet a variety of industrial requirements, including those in chemical processing, aerospace, power generation, and more. Our dedication to quality and innovation guarantees that our products offer exceptional performance, durability, and cost-effectiveness. Trust Jay Steel for your tube fitting needs and experience the excellence that sets us apart in the industry.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits:
Choosing Jay Steel’s Inconel Alloy 600/625 Positionable Male Elbow offers numerous advantages:
- High Temperature Resistance: Capable of withstanding extreme heat, making them ideal for high-temperature applications.
- Excellent Corrosion Resistance: Resistant to a wide range of corrosive environments, prolonging the connector’s service life.
- Superior Mechanical Strength: Maintains integrity under high pressure and mechanical stress.
- Versatility: Suitable for a broad spectrum of industrial applications due to their robust material properties.
- Cost-Effective: Reduced maintenance and extended service life translate into significant cost savings.
Grades Available:
Jay Steel offers Inconel Alloy 600/625 Positionable Male Elbow fittings in the following grade specifications:
Grade | Material Composition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
Inconel Alloy 600 | 72% Ni, 14-17% Cr, 6-10% Fe | 655 | 310 | 40 |
Inconel Alloy 625 | 58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe | 827 | 414 | 30 |
Types of the Product:
Our Inconel Alloy 600/625 Positionable Male Elbow fittings are available in various configurations to meet diverse needs:
- Standard Positionable Male Elbow
- Custom Positionable Male Elbow
Industrial Application:
Jay Steel’s Inconel Alloy 600/625 Positionable Male Elbow fittings are utilized in a variety of industries due to their exceptional properties:
- Chemical Processing: Ideal for handling corrosive chemicals and high temperatures.
- Aerospace: Suitable for high-stress, high-temperature applications.
- Power Generation: Ensures reliable performance in high-pressure, high-heat conditions.
- Oil and Gas: Durable in corrosive and extreme environments.
- Marine Engineering: Offers excellent resistance to seawater corrosion
Testing:
Jay Steel conducts rigorous testing to ensure the highest quality and performance of our products. Our testing procedures include:
- Chemical Analysis: Verifying material composition.
- Dimensional Inspection: Ensuring precise measurements.
- Mechanical Testing: Assessing tensile and yield strengths.
- Non-Destructive Testing (NDT): Ensuring product integrity without causing damage.
Why Choose Jay Steel:
Jay Steel is the trusted choice for tube fittings for several compelling reasons:
- Unmatched Quality: We adhere to the highest standards of quality to ensure exceptional performance.
- Expertise and Innovation: Our extensive experience and technical knowledge enable us to provide innovative solutions tailored to your needs.
- Customer Commitment: We prioritize customer satisfaction by offering superior products and exceptional service.
- Global Reach: With a vast network and international presence, Jay Steel efficiently delivers products and support worldwide.
Choose Jay Steel for your Inconel Alloy 600/625 Positional Male Elbow fitting needs and experience the superior quality and performance that set us apart. Contact us today to learn more about our products and how we can support your industrial requirements.
