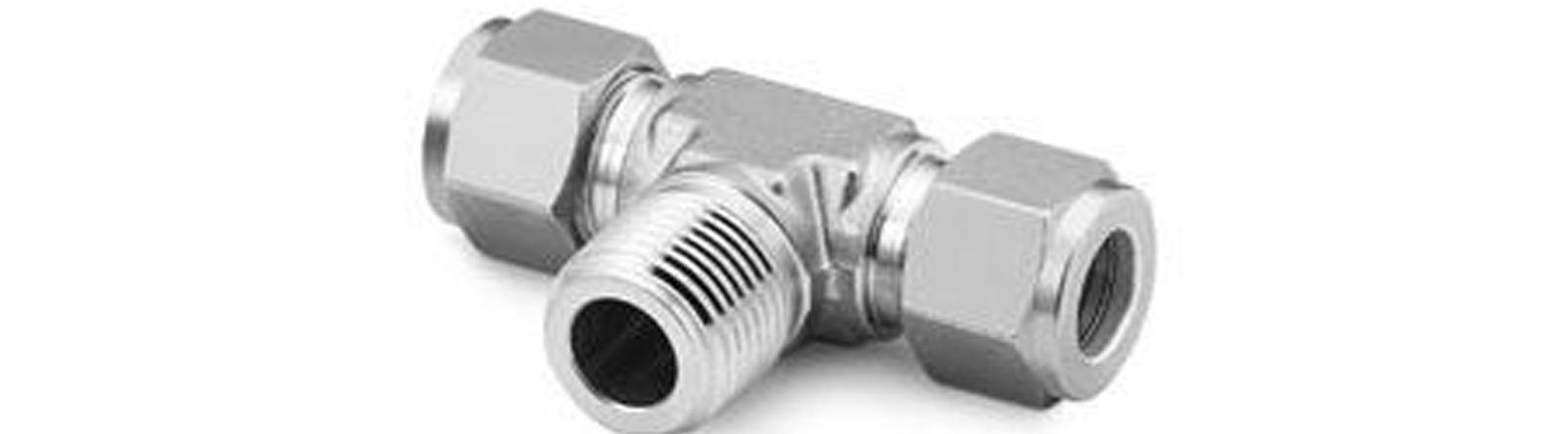

Inconel Alloy 600/625 Positionable Male Branch Tee

Welcome to Jay Steel, the premier manufacturer of top-quality tube fittings. Our Inconel Alloy 600/625 Positionable Male Branch Tee is an exemplary product that embodies our commitment to excellence. Designed for high-performance applications, this fitting is made from Inconel alloys known for their exceptional resistance to oxidation and corrosion, as well as their ability to withstand extreme temperatures. At Jay Steel, we understand the critical role that reliable fittings play in your operations, and our Inconel Alloy 600/625 Positionable Male Branch Tee is engineered to deliver unparalleled performance and durability.

Whether you are in the aerospace, chemical processing, or power generation industry, our positionable male branch tee provides a robust and dependable solution. Jay Steel has built its reputation on delivering products that meet the highest standards of quality and reliability. By choosing our Inconel Alloy 600/625 Positionable Male Branch Tee, you are ensuring that your systems benefit from the latest advancements in material science and manufacturing technology.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Jay Steel’s Inconel Alloy 600/625 Positionable Male Branch Tee fittings offers several advantages:

Exceptional Heat Resistance: Capable of withstanding extreme temperatures, ensuring reliable performance in high-heat environments.
Superior Corrosion Resistance: Highly resistant to oxidation and various corrosive environments, extending the lifespan of the connectors.
High Strength and Durability: Maintains structural integrity under high pressure and mechanical stress.
Versatile Applications: Suitable for a wide range of industrial uses due to its robust material properties
Cost Efficiency: Reduced maintenance needs and extended service life translate to significant cost savings.

Grades Available:

Jay Steel provides Inconel Alloy 600/625 Positionable Male Branch Tee fittings in the following grade specifications:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Inconel Alloy 600	72% Ni, 14-17% Cr, 6-10% Fe	655	310	40
Inconel Alloy 625	58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe	827	414	30

Types of the Product:

Our Inconel Alloy 600/625 Positionable Male Branch Tee fittings are available in various configurations to meet diverse requirements:

Standard Positionable Male Branch Tee
Custom Positionable Male Branch Tee

Industrial Application:

Jay Steel’s Inconel Alloy 600/625 Positionable Male Branch Tee fittings are widely used across various industries due to their remarkable properties:

Chemical Processing: Ideal for handling corrosive chemicals and high temperatures.
Aerospace: Suitable for high-stress, high-temperature environments.
Power Generation: Reliable performance in high-pressure, high-heat conditions.
Oil and Gas: Durable in corrosive and extreme environments.
Marine Engineering: Excellent resistance to seawater corrosion.

Testing:

To ensure the highest quality and performance, Jay Steel conducts rigorous testing procedures on all products, including:

Chemical Analysis: Verifying the material composition.
Dimensional Inspection: Ensuring precise measurements and tolerances.
Mechanical Testing: Assessing tensile and yield strengths.
Non-Destructive Testing (NDT): Ensuring product integrity without causing damage.

Why Choose Jay Steel:

Jay Steel is the preferred choice for tube fittings for several compelling reasons:

Unmatched Quality: We adhere to the highest quality standards to ensure exceptional product performance.
Expertise and Innovation: Our extensive experience and technical knowledge enable us to provide innovative solutions tailored to your needs.
Customer Commitment: We prioritize customer satisfaction by offering superior products and exceptional service.
Global Reach: With a vast network and international presence, Jay Steel efficiently delivers products and support worldwide.

Choose Jay Steel for your Inconel Alloy 600/625 Positionable Male Branch Tee fitting needs and experience the superior quality and performance that set us apart. Contact us today to learn more about our products and how we can support your industrial requirements.
