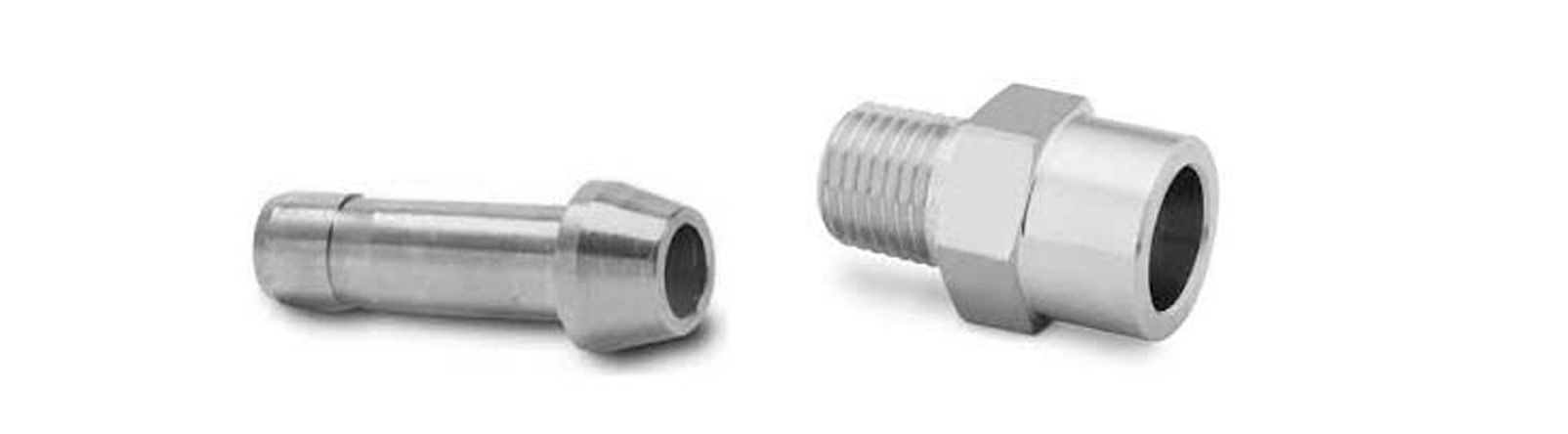

Inconel Alloy 600/625 Port Connector

Welcome to Jay Steel, the leading manufacturer of premium tube fittings. Our Inconel Alloy 600/625 Port Connectors are designed to deliver superior performance in the most demanding industrial environments. These connectors, made from high-grade Inconel alloys, are known for their exceptional resistance to extreme temperatures, corrosion, and mechanical stress. Jay Steel is committed to providing you with products that enhance the efficiency and safety of your operations.

Our Inconel Alloy 600/625 Port Connectors offer unmatched durability and reliability, making them the ideal choice for applications requiring robust and long-lasting fittings. At Jay Steel, we ensure that you receive top-tier products that maintain consistent performance under the toughest conditions.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Jay Steel’s Inconel Alloy 600/625 Port Connectors offers several advantages:

Superior Heat Resistance: Maintains performance even in extreme temperatures.
Excellent Corrosion Resistance: Ensures longevity and reliability in corrosive environments.
High Mechanical Strength: Capable of withstanding high pressures and mechanical loads.
Versatility: Suitable for a wide range of applications across different industries.
Cost-Effective: Reduces maintenance costs and downtime due to its durability and long service life.

Grades Available:

Jay Steel offers Inconel Alloy 600/625 Port Connectors in the following grades:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Inconel Alloy 600	72% Ni, 14-17% Cr, 6-10% Fe	655	310	40
Inconel Alloy 625	58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe	827	414	30

Types of the Product:

Our Inconel Alloy 600/625 Port Connectors are available in various configurations to meet your specific requirements:

Male Port Connector
Female Port Connector
Bulkhead Port Connector
Union Port Connector

Industrial Application:

Jay Steel’s Inconel Alloy 600/625 Port Connectors are widely utilized across various industries due to their exceptional properties:

Chemical Processing: Ideal for environments with high temperatures and corrosive chemicals.
Aerospace: Suitable for high-stress and high-temperature applications.
Power Generation: Reliable in high-pressure and high-heat conditions.
Oil and Gas: Durable in corrosive and extreme environments.
Marine Engineering: Excellent resistance to seawater corrosion.

Testing:

To ensure the highest quality, Jay Steel subjects all products to rigorous testing procedures, including:

Chemical Analysis: Verification of material composition.
Dimensional Inspection: Ensuring precise measurements and adherence to specifications.
Mechanical Testing: Assessing tensile and yield strengths.
Non-Destructive Testing (NDT): Checking for material integrity without causing damage.

Why Choose Jay Steel:

Jay Steel stands out as the preferred choice for tube fittings due to our unwavering commitment to excellence:

Unmatched Quality: We adhere to the highest standards to ensure superior product performance.
Expertise and Innovation: Our extensive experience and technical knowledge drive our ability to provide innovative solutions.
Customer Commitment: We prioritize customer satisfaction by offering exceptional products and outstanding service.
Global Reach: Our extensive network and international presence ensure efficient delivery and support worldwide.

Choose Jay Steel for your Inconel Alloy 600/625 Port Connectors and experience the quality and reliability that define our products. Contact us today to learn more about how we can meet your industrial requirements.
