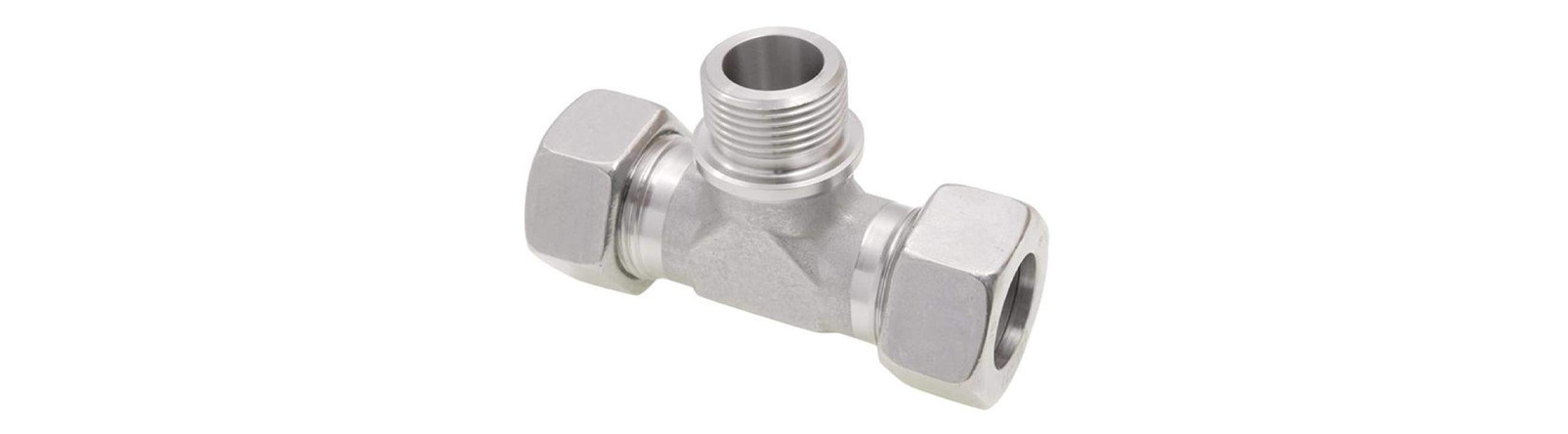

Inconel Alloy 600/625 Male Branch Tee
Welcome to Jay Steel, your premier source for high-quality tube fittings. We proudly present our Inconel Alloy 600/625 Male Branch Tee fittings, designed to deliver unmatched performance in demanding industrial environments. Known for their excellent resistance to oxidation and corrosion, these fittings are essential for applications requiring durability and reliability under extreme conditions. At Jay Steel, we are dedicated to manufacturing products that meet the highest standards of excellence, ensuring that our customers receive the best in terms of quality and functionality.
Our Inconel Alloy 600/625 Male Branch Tee fittings are utilized across various industries such as aerospace, chemical processing, and power generation, where they consistently provide reliable and efficient solutions. Jay Steel’s commitment to innovation and quality ensures that each fitting we produce meets the rigorous demands of these challenging environments. Trust in Jay Steel for all your tube fitting needs, and experience the superior quality and service that make us a leader in the industry.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits:
Opting for Jay Steel’s Inconel Alloy 600/625 Male Branch Tee fittings offers several advantages:
- High Temperature Resistance: Capable of withstanding extreme heat, making them ideal for high-temperature applications.
- Outstanding Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, enhancing product longevity.
- Exceptional Mechanical Strength: Maintains integrity under high pressure and mechanical stress.
- Versatile Applications: Suitable for various industrial uses, providing dependable and adaptable solutions.
- Cost Efficiency: Reduced maintenance and extended service life result in significant cost savings.
Grades Available:
Jay Steel offers Inconel Alloy 600/625 Male Branch Tee fittings in the following grade specifications:
Grade | Material Composition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
Inconel Alloy 600 | 72% Ni, 14-17% Cr, 6-10% Fe | 655 | 310 | 40 |
Inconel Alloy 625 | 58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe | 827 | 414 | 30 |
Types of the Product:
Our Inconel Alloy 600/625 Male Branch Tee fittings are available in multiple configurations to cater to diverse requirements:
- Standard Male Branch Tee
- Custom Male Branch Tee
Industrial Application:
Jay Steel’s Inconel Alloy 600/625 Unions are utilized in various industravies due to their exceptional properties:
- Chemical Processing: Ideal for handling corrosive chemicals and high temperatures.
- Aerospace: Suitable for high-stress, high-temperature applications.
- Power Generation: Ensures reliable performance in high-pressure, high-heat conditions.
- Oil and Gas: Durable in corrosive and extreme environments.
- Marine Engineering: Offers excellent resistance to seawater corrosion.
Testing:
Jay Steel ensures the highest quality and performance of our products through rigorous testing procedures, including:
- Chemical Analysis: Verifying material composition.
- Dimensional Inspection: Ensuring precise measurements.
- Mechanical Testing: Assessing tensile and yield strengths.
- Non-Destructive Testing (NDT): Ensuring product integrity without causing damage.
Why Choose Jay Steel:
Jay Steel is the preferred choice for tube fittings for several compelling reasons:
- Unmatched Quality: We adhere to the highest standards of quality to ensure exceptional performance.
- Expertise and Innovation: Our extensive experience and technical knowledge enable us to provide innovative solutions tailored to your needs.
- Customer Commitment: We prioritize customer satisfaction by offering superior products and exceptional service.
- Global Reach: With a vast network and international presence, Jay Steel efficiently delivers products and support worldwide.
Choose Jay Steel for your Inconel Alloy 600/625 Male Branch Tee fitting needs and experience the superior quality and performance that set us apart. Contact us today to learn more about our products and how we can support your industrial requirements.
