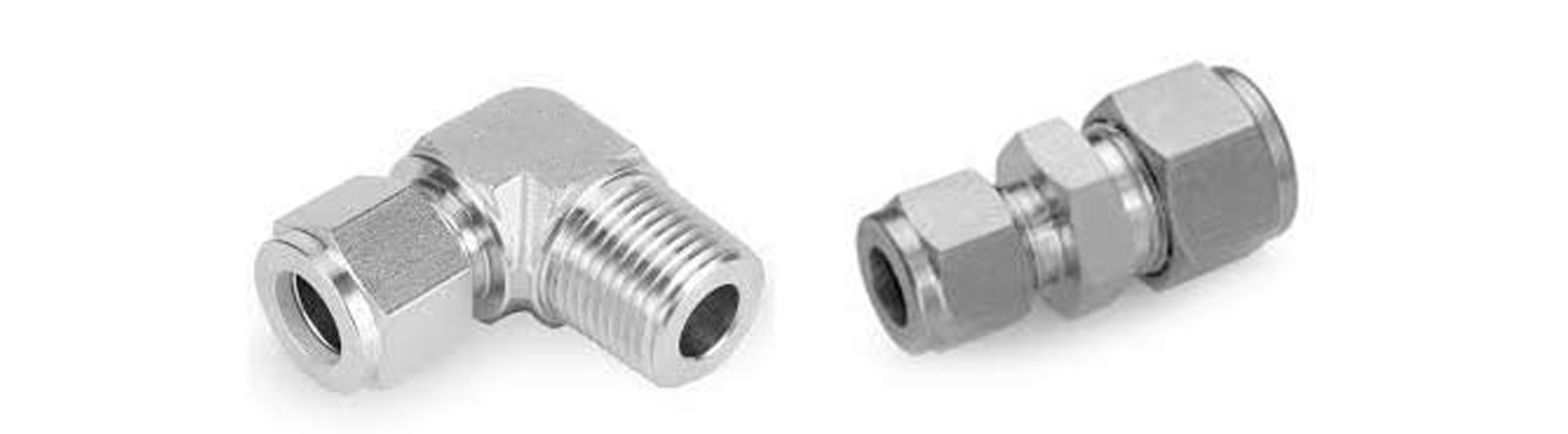

Inconel Alloy 600/625 Female Connector
Welcome to Jay Steel, the leading manufacturer of high-quality tube fittings. We are proud to introduce our Inconel Alloy 600/625 Female Connector, a product that stands out for its exceptional durability and resistance to extreme conditions. Inconel alloys are renowned for their ability to withstand high temperatures, corrosion, and oxidation, making them the preferred choice in demanding industrial environments. Our connectors made from Inconel Alloy 600 and Alloy 625 are designed to provide reliable and long-lasting performance, ensuring your operations run smoothly and efficiently.
At Jay Steel, we understand the critical role that high-performance connectors play in various industries. Our Inconel Alloy 600/625 Female Connectors are meticulously engineered to meet the rigorous standards of industries such as chemical processing, aerospace, power generation, and more. With Jay Steel, you can trust that you are getting a product that not only meets but exceeds your expectations.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits:
Choosing Jay Steel’s Inconel Alloy 600/625 Female Connector offers numerous benefits:
- Exceptional Heat Resistance: Capable of withstanding extreme temperatures, ensuring reliable performance in high-heat environments.
- Superior Corrosion Resistance: Resistant to a wide range of corrosive substances, extending the lifespan of the connectors.
- High Strength and Durability: Maintains integrity under high pressure and mechanical stress.
- Versatile Applications: Suitable for a wide range of industrial uses due to its robust material properties
- Cost Efficiency: Reduced maintenance and extended service life lead to significant cost savings.
Grades Available:
Jay Steel offers Inconel Alloy 600/625 Female Connectors in the following grade specifications:
Grade | Material Composition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
Inconel Alloy 600 | 72% Ni, 14-17% Cr, 6-10% Fe | 655 | 310 | 40 |
Inconel Alloy 625 | 58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe | 827 | 414 | 30 |
Types of the Product:
Our Inconel Alloy 600/625 Female Connectors come in various configurations to suit different needs:
- Standard Female Connectors
- Miniature Female Connectors
- High-Pressure Female Connectors
Industrial Application:
Jay Steel’s Inconel Alloy 600/625 Female Connectors are utilized across multiple industries due to their exceptional properties:
- Chemical Processing: Ideal for handling corrosive chemicals and high temperatures.
- Aerospace: Suitable for high-stress, high-temperature applications.
- Power Generation: Ensures reliable performance in high-pressure, high-heat conditions.
- Oil and Gas: Durable in corrosive and extreme environments.
- Marine Engineering: Offers excellent resistance to seawater corrosion.
Testing:
Jay Steel conducts rigorous testing to ensure the highest quality and performance of our products. Our testing procedures include:
- Chemical Analysis: Verifying material composition.
- Dimensional Inspection: Ensuring precise measurements.
- Mechanical Testing: Assessing tensile and yield strengths.
- Non-Destructive Testing (NDT): Ensuring product integrity without causing damage.
Why Choose Jay Steel:
Jay Steel is the trusted choice for tube fittings for several compelling reasons:
- Unmatched Quality: We adhere to the highest standards of quality to ensure exceptional performance.
- Expertise and Innovation: Our extensive experience and technical knowledge enable us to provide innovative solutions tailored to your needs.
- Customer Commitment: We prioritize customer satisfaction by offering superior products and exceptional service.
- Global Reach: With a vast network and international presence, Jay Steel efficiently delivers products and support worldwide.
Choose Jay Steel for your Inconel Alloy 600/625 Female Connector needs and experience the superior quality and performance that set us apart. Contact us today to learn more about our products and how we can support your industrial requirements.
