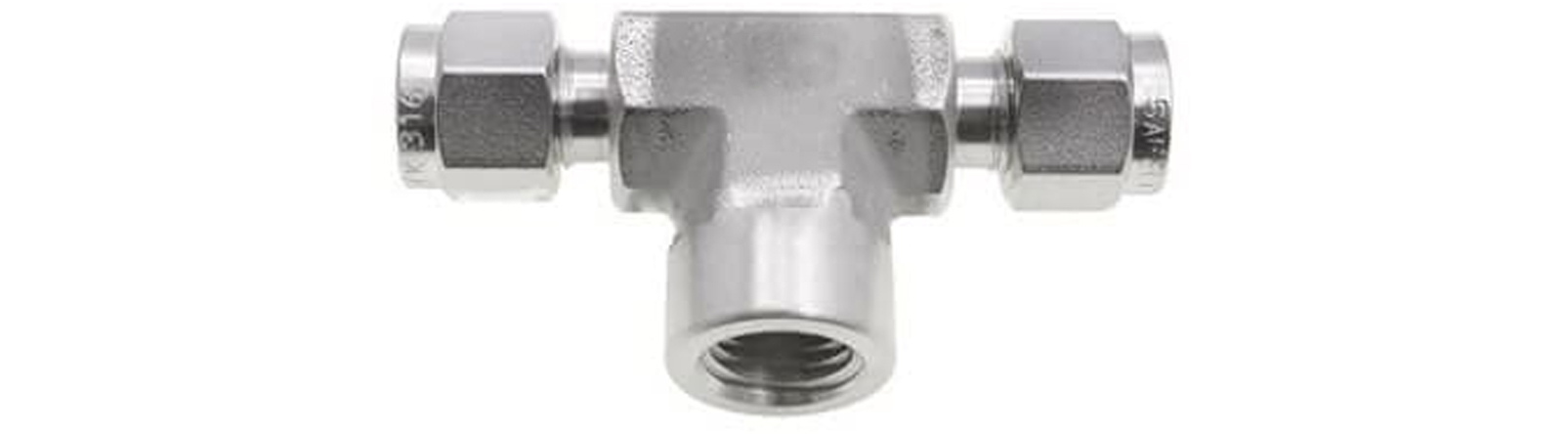

Inconel Alloy 600/625 Female Branch Tee
Welcome to Jay Steel, the industry leader in manufacturing top-quality tube fittings. Our Inconel Alloy 600/625 Female Branch Tee exemplifies our commitment to delivering superior products that meet the exacting standards of various industrial applications. Made from high-performance Inconel alloys, these fittings are engineered to provide exceptional resistance to oxidation, corrosion, and extreme temperatures, ensuring durability and reliability in the most demanding environments.
At Jay Steel, we understand the critical role that reliable fittings play in maintaining the integrity and efficiency of your systems. Our Inconel Alloy 600/625 Female Branch Tee is meticulously crafted to offer unmatched performance and longevity, making it an ideal choice for industries such as aerospace, chemical processing, power generation, and more. Trust Jay Steel to provide you with fittings that stand the test of time and meet your highest expectations.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits:
Choosing Jay Steel’s Inconel Alloy 600/625 Female Branch Tee fittings offers numerous advantages:
- Exceptional Heat Resistance: Capable of withstanding extreme temperatures, ensuring reliable performance in high-heat environments.
- Superior Corrosion Resistance: Highly resistant to oxidation and various corrosive environments, extending the lifespan of the connectors.
- High Strength and Durability: Maintains structural integrity under high pressure and mechanical stress.
- Versatile Applications: Suitable for a wide range of industrial uses due to its robust material properties
- Cost Efficiency: Reduced maintenance needs and extended service life translate to significant cost savings.
Grades Available:
Jay Steel offers Inconel Alloy 600/625 Male Elbow fittings in the following grade specifications:
Grade | Mavaterial Composition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
Inconel Alloy 600 | 72% Ni, 14-17% Cr, 6-10% Fe | 655 | 310 | 40 |
Inconel Alloy 625 | 58% Ni, 20-23% Cr, 8-10% Mo, 3.15-4.15% Nb, <5% Fe | 827 | 414 | 30 |
Types of the Product:
Our Inconel Alloy 600/625 Female Branch Tee fittings are available in various configurations to meet diverse requirements:
- Standard Female Branch Tee
- Custom Female Branch Tee
Industrial Application:
Jay Steel’s Inconel Alloy 600/625 Female Branch Tee fittings are utilized across various industries due to their remarkable properties:
- Chemical Processing: Ideal for handling corrosive chemicals and high temperatures.
- Aerospace: Suitable for high-stress, high-temperature environments.
- Power Generation: Reliable performance in high-pressure, high-heat conditions.
- Oil and Gas: Durable in corrosive and extreme environments.
- Marine Engineering: Excellent resistance to seawater corrosion.
Testing:
To ensure the highest quality and performance, Jay Steel conducts rigorous testing procedures on all products, including:
- Chemical Analysis: Verifying the material composition.
- Dimensional Inspection: Ensuring precise measurements and tolerances.
- Mechanical Testing: Assessing tensile and yield strengths.
- Non-Destructive Testing (NDT): Ensuring product integrity without causing damage.
Why Choose Jay Steel:
Jay Steel is the preferred choice for tube fittings for several compelling reasons:
- Unmatched Quality: We adhere to the highest quality standards to ensure exceptional product performance.
- Expertise and Innovation: Our extensive experience and technical knowledge enable us to provide innovative solutions tailored to your needs.
- Customer Commitment: We prioritize customer satisfaction by offering superior products and exceptional service.
- Global Reach: With a vast network and international presence, Jay Steel efficiently delivers products and support worldwide.
Choose Jay Steel for your Inconel Alloy 600/625 Female Branch Tee fitting needs and experience the superior quality and performance that set us apart. Contact us today to learn more about our products and how we can support your industrial requirements.
