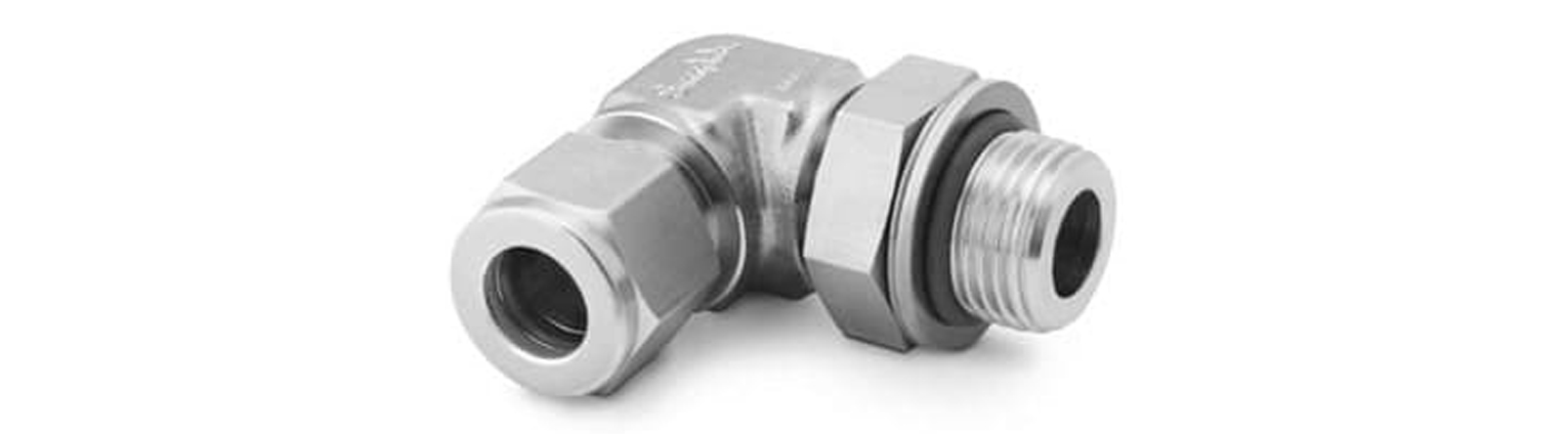

Duplex/Super Duplex Steel Positionable Male Elbow
Welcome to Jay Steel, a relied on leader within the production of awesome industrial fittings. We are proud to offer our Positionable Male Elbow connectors, designed to offer advanced flexibility, reliability, and ease of use in a huge range of industrial programs. At Jay Steel, our commitment to excellence ensures that each product meets the highest requirements of precision and durability.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits of Positionable Male Elbow Connectors
- Enhanced Flexibility: The positionable layout permits for precise adjustment and alignment, making it less complicated to shape the connector into complicated piping structures.
- Optimal Flow Control: The adjustable attitude allows a smoother drift of fluids, minimizing pressure drop and reducing turbulence.
- Ease of Installation: Our connectors are designed for short and smooth assembly and disassembly, simplifying upkeep and reducing downtime.
- Durability: Manufactured from exceptional materials, those connectors are constructed to withstand difficult industrial environments and excessive-pressure conditions.
- Corrosion Resistance: The substances used provide extraordinary resistance to corrosion, ensuring lengthy-lasting performance and decreasing renovation costs.
Grades Available:
Jay Steel offers Positionable Male Elbow connectors in a variety of grades to suit different industrial requirements. Here are the available grades along with their specifications:
| Grade | Specifications |
| Stainless Steel 304 | ASTM A182, ASTM A276, Good corrosion resistance, Excellent weldability |
| Stainless Steel 316 | ASTM A182, ASTM A276, Superior corrosion resistance, High-temperature strength |
| Brass | ASTM B16, Good machinability, Corrosion resistance in mild environments |
| Carbon Steel | ASTM A105, ASTM A106, High strength, Cost-effective, Suitable for high-pressure applications |
Types of Positionable Male Elbow Connectors
Jay Steel manufactures a complete variety of Positionable Male Elbow connectors to cater to various applications:
- Standard Positionable Male Elbow: Ideal for popular-motive connections in piping and tubing systems.
- Reducing Positionable Male Elbow: Allows connection of pipes of different diameters, offering flexibility in piping systems.
- Street Positionable Elbow: Features one male and one girl cease, useful for connecting pipes of various genders.
Industrial Application:
Our Positionable Male Elbow connectors are widely used throughout various industries because of their robustness and reliability:
- Oil and Gas: Essential for drilling, pipeline systems, and refineries, imparting stable and leak-proof connections.
- Chemical Processing: Used in the transportation and processing of chemical compounds, making sure secure and dependable connections.
- Marine Applications: Ideal for shipbuilding and marine engineering, imparting great resistance to seawater corrosion.
- Power Generation: Utilized in energy flora, including nuclear and fossil gas plants, for high-pressure and high-temperature programs.
- Food and Beverage: Ensuring secure and hygienic connections in processing plant life, contributing to food protection and exceptional.
Testing:
To make sure the very best first-class, Jay Steel’s Positionable Male Elbow connectors undergo rigorous trying out:
- Hydrostatic Testing: Ensures the connectors can face up to high-pressure conditions without leaking.
- Pneumatic Testing: Detects any gasoline leaks to make certain hermetic connections.
- Non-Destructive Testing (NDT): Including ultrasonic and radiographic checking out to detect any inner defects.
- Chemical Analysis: Verifies the fabric composition to make sure it meets the required requirements and presents the required corrosion resistance.
Why Choose Jay Steel:
Jay Steel stands proud as a pacesetter in the production of Positionable Male Elbow connectors for numerous compelling reasons:
- Quality Assurance: We adhere to stringent fine manipulation measures to make sure our products meet and exceed enterprise standards.
- Innovative Solutions: Our continuous innovation ensures that we offer advanced and dependable solutions for all of your commercial desires.
- Customer-Centric Approach: We prioritize our customers’ needs, providing tailored solutions and awesome after-sales assistance.
- Competitive Pricing: Our remarkable products are low-budget, making sure you get the best value for your funding.
- Expertise and Experience: With years of enjoyment inside the enterprise, our information guarantees you acquire merchandise that are both dependable and efficient.
In conclusion, Jay Steel’s Positionable Male Elbow connectors are the correct choice for diverse business applications. Our dedication to excellence, innovation, and customer delight makes us a trusted companion on your commercial tasks. Contact us nowadays to examine more about our products and how we are able to assist you in attaining your undertaking goals.
