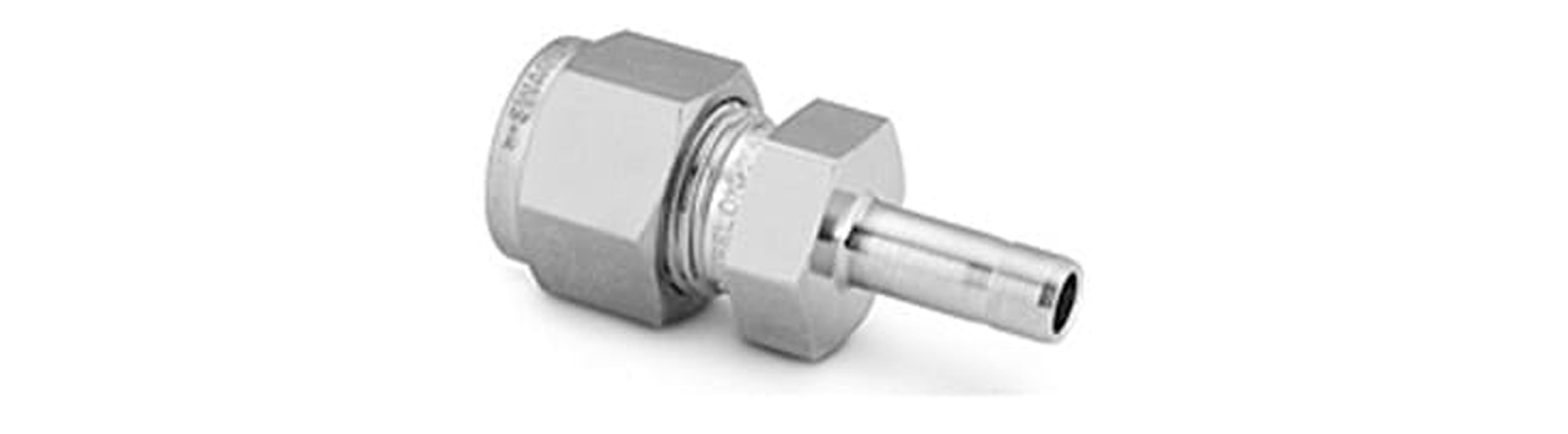

Duplex/Super Duplex Steel Port Connector
Welcome to Jay Steel, your relied on company of premium commercial fittings. Our Port Connectors are designed to provide reliable connections and sealing answers for numerous piping and tubing applications. With precision engineering and sturdy construction, Jay Steel ensures that our Port Connectors meet the very best requirements of first-class and performance.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Key Features and Benefits
- Secure Connection: Our Port Connectors offer a stable and dependable connection for pipes and tubing, making sure minimal leakage and foremost overall performance.
- Versatile Design: to deal with special port sizes and configurations, our Port Connectors provide versatility in numerous applications.
- Durable Construction: Crafted from terrific substances, our Port Connectors are built to withstand harsh commercial environments and keep integrity over the years.
- Leak-Free Sealing: Precision machining and tight tolerances make certain a leak-unfastened seal, stopping fluid loss and contamination.
- Easy Installation: Designed for clean set up and assembly, our Port Connectors streamline the setup procedure, saving time and labor fees.
Grades Available:
Jay Steel offers Port Connectors in a variety of grades to suit your specific requirements. Here are the grades we offer along with their specifications:
Grade | Specifications |
Stainless Steel 304 | ASTM A182, ASTM A276, Corrosion-resistant, Excellent weldability |
Stainless Steel 316 | ASTM A182, ASTM A276, High corrosion resistance, Excellent strength |
Brass | ASTM B16, Excellent machinability, Good corrosion resistance |
Carbon Steel | ASTM A105, ASTM A106, High strength, Suitable for high-pressure applications |
Applications
Our Port Connectors find programs throughout diverse industries, such as:
- Oil and Gas
- Chemical Processing
- Petrochemical
- Power Generation
- Water Treatment
- HVAC (Heating, Ventilation, and Air Conditioning)
- Marine Engineering
Quality Assurance
At Jay Steel, fine is paramount. Our Port Connectors undergo rigorous trying out to make certain compliance with industry requirements and specs. From material composition to dimensional accuracy, we uphold the highest requirements to supply products you can consider.
Why Choose Jay Steel:
- Experience: With years of enjoyment in the enterprise, we’ve got the knowledge to meet your unique requirements.
- Quality: Our dedication to quality is unwavering, making sure products that meet the highest requirements of excellence.
- Customer Focus: We prioritize patron pride and goal to provide exceptional provider and guide.
- Innovation: We constantly spend money on studies and development to convey you progressive solutions that beautify overall performance and performance.
Choose Jay Steel for superior fine, reliability, and performance. Contact us today to learn extra about our Port Connectors and the way they can advantage your operations.
