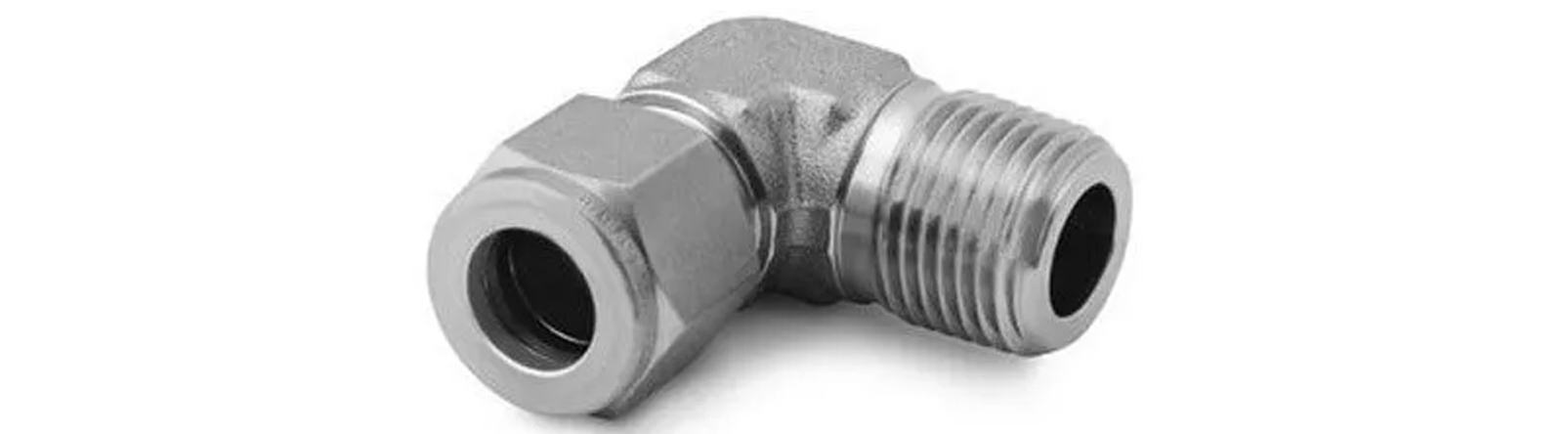

Carbon Steel Positionable Male Elbow

Jay Steel, a leading manufacturer of tube fittings, is proud to present our high-quality Carbon Steel Positionable Male Elbows. These innovative fittings are designed to offer maximum flexibility and precision in various piping systems, allowing for easy adjustment and positioning to meet specific application requirements. Crafted with meticulous attention to detail, our Carbon Steel Positionable Male Elbows ensure robust performance and longevity even in the most demanding industrial environments. At Jay Steel, we are committed to delivering products that meet the highest standards of quality and reliability, making us a trusted partner in the industry.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Adjustable Positioning: Provides precise adjustment capabilities, enhancing system flexibility and efficiency.
High Durability: Manufactured from premium carbon steel, ensuring exceptional strength and a long service life.
Corrosion Resistance: Coated with anti-corrosive materials to withstand harsh industrial environments.
Leak-proof Connections: Engineered to deliver secure, leak-proof connections, ensuring system integrity and safety.
Versatile Applications: Suitable for a wide range of industries, including oil and gas, petrochemical, and more.

Grades Available:

Grade	Specifications
ASTM A105	Standard specification for carbon steel forgings for piping applications.
ASTM A350 LF2	Low-temperature carbon steel forging for fittings, flanges, and valves.
ASTM A694	Carbon and alloy steel forgings for high-pressure transmission service.
ASTM A216 WCB	Standard specification for carbon steel castings suitable for fusion welding for high-temperature service.

Types of Carbon Steel Positionable Male Elbow

Standard Positionable Male Elbow: Designed for general-purpose directional changes with adjustable positioning.
Threaded Positionable Male Elbow: Features threaded ends for easy and secure connections with adjustable positioning.
Welded Positionable Male Elbow: Designed for welded connections, providing additional strength and adjustable positioning.
Reducing Positionable Male Elbow: Used to connect pipes of different diameters, allowing for flexible system design with adjustable positioning.

Industrial Application:

Oil and Gas: Utilized in pipelines, refineries, and drilling operations for efficient fluid transportation.
Petrochemical: Essential for chemical processing plants and storage facilities, ensuring safe and reliable operations.
Hydraulic Systems: Integral in hydraulic machinery and equipment, providing secure and efficient connections.
Marine: Applied in shipbuilding and offshore platforms, withstanding harsh marine conditions.
Power Generation: Used in power plants to ensure safe and efficient fluid flow.

Testing:

Jay Steel adheres to stringent testing protocols to ensure the highest quality of our Carbon Steel Positionable Male Elbows:

Hydrostatic Testing: Ensures the fittings can withstand high pressure without leaking.
Ultrasonic Testing: Detects internal flaws or imperfections to guarantee product integrity.
Material Testing: Verifies the chemical and mechanical properties of the carbon steel used.
Dimensional Inspection: Ensures the fittings meet precise dimensions and tolerances.

Why Choose Jay Steel:

Expertise: Extensive experience in manufacturing high-quality tube fittings, ensuring reliable performance.
Quality Assurance: Rigorous quality control measures and compliance with international standards.
Customer Support: Dedicated support team to assist with product selection and technical queries.
Innovation: Commitment to continuous improvement and adoption of advanced manufacturing technologies.
Global Reach: Serving clients worldwide with reliable and timely delivery.

Jay Steel is your trusted source for Carbon Steel Positionable Male Elbows, offering superior products that ensure safety, reliability, and efficiency in your industrial applications.
