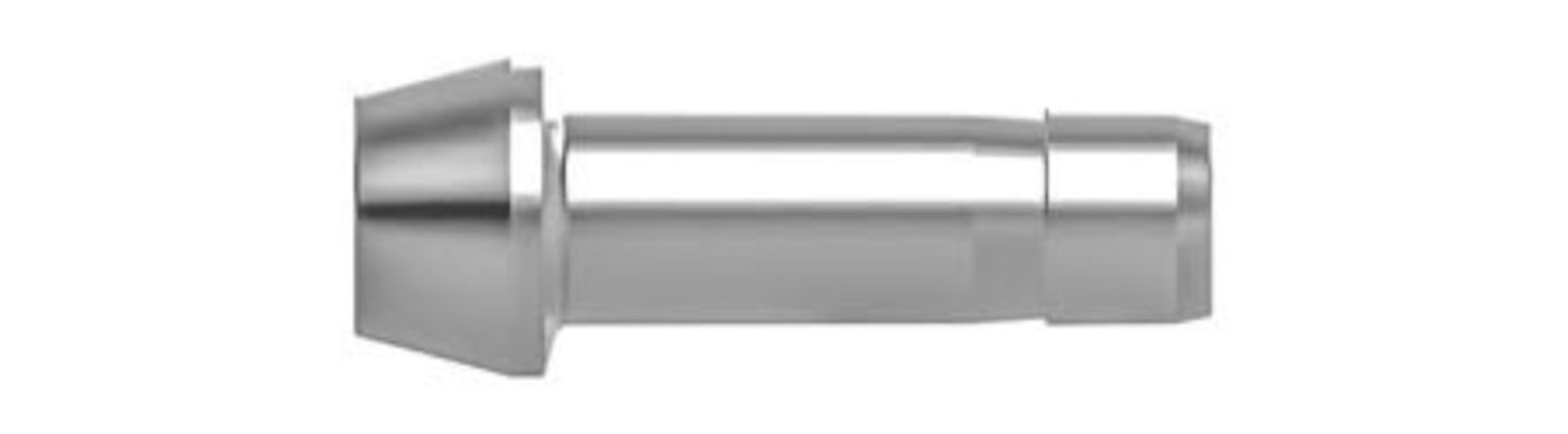

Carbon Steel Port Connector
Jay Steel, a renowned manufacturer of tremendous tube fittings, proudly offers our Carbon Steel Port Connector. Engineered to satisfy the rigorous needs of various industries, our Port Connector gives superior performance, reliability, and durability. With a steadfast dedication to excellence, Jay Steel guarantees that every Port Connector is crafted with precision and adheres to the best industry requirements. Whether you are within the oil and gasoline zone, chemical processing, or every other industry requiring robust and efficient tube fittings, Jay Steel’s Carbon Steel Port Connector is the best solution.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits:
- Superior Strength: Made from top-class carbon metal, making sure terrific tensile energy and sturdiness.
- Corrosion Resistance: Treated to withstand corrosion, extending the lifespan of the connector.
- Leak-Proof Performance: Precision engineering ensures a good seal, preventing leaks and ensuring safety.
- Versatile Applications: Suitable for a huge variety of commercial programs, supplying flexibility and adaptability.
- Cost-Effective: Offers a cheap solution without compromising on quality and overall performance.
Grades Available:
Jay Steel offers Carbon Steel Port Connectors in various grades to meet unique necessities and standards. Below is a list of the to-be-had grades and their specifications:
Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
ASTM A105 | 485 | 250 | 22 | 187 max |
ASTM A350 LF2 | 485 | 250 | 22 | 197 max |
ASTM A694 F52 | 360 | 240 | 22 | 187 max |
Types of the Product:
- Straight Port Connector
- Elbow Port Connector
- Tee Port Connector
- Cross Port Connector
- Bulkhead Port Connector
Industrial Application:
Jay Steel’s Carbon Steel Port Connectors are utilized in numerous industries, including, but not limited to:
- Oil and Gas: For excessive stress and high-temperature applications.
- Chemical Processing: Providing stable connections in corrosive environments.
- Petrochemical: Ensuring leak-proof performance in essential operations.
- Power Generation: Reliable performance in power plants and related centers.
- Marine: Suitable to be used in harsh marine environments because of remarkable corrosion resistance.
Testing:
To ensure the highest quality and performance, our Carbon Steel Port Connectors undergo rigorous checking out, such as:
- Hydrostatic Testing: To check for leaks and ensure integrity underneath strain.
- Non-Destructive Testing (NDT): Methods such as ultrasonic and radiographic testing are used to detect any internal defects.
- Mechanical Testing: Including tensile, hardness, and effect checks to affirm material power and durability.
- Dimensional Inspection: To make certain specific measurements and adhere to specifications.
Why Choose Jay Steel:
- Quality Assurance: Commitment to handing over the best quality merchandise through stringent first-rate management measures.
- Expertise: Extensive revel in and know-how in production tube fittings for diverse industries.
- Customer Satisfaction: Dedicated to offering first-rate customer support and aid.
- Innovative Solutions: Continuous innovation to fulfill the evolving desires of our clients.
- Global Reach: Serving clients worldwide with dependable and efficient tube fittings.
Choose Jay Steel for your Carbon Steel Port Connector desires and experience an appropriate combination of great, overall performance, and reliability.
