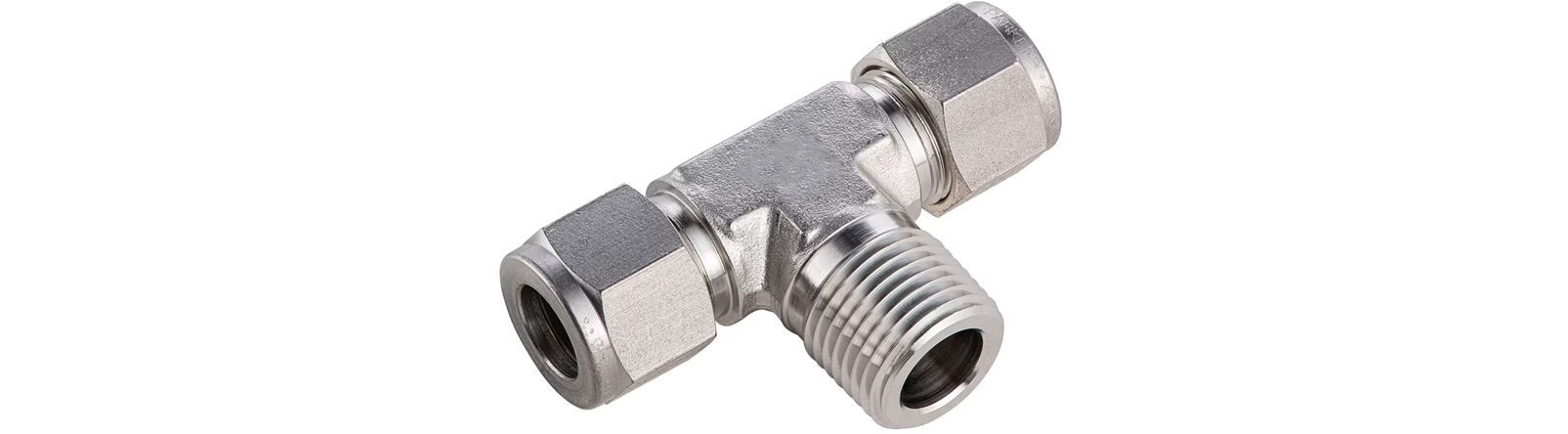

Carbon Steel Male Branch Tee
Jay Steel, a renowned producer of tube fittings, takes satisfaction in presenting an in-depth range of carbon steel male branch tee fittings. Engineered with precision and synthetic usage of top-class-grade carbon steel, those fittings are designed to satisfy the annoying necessities of diverse industries. The Male Branch Tee is a critical thing in piping structures, facilitating smooth waft and distribution of fluids and gases. With a focus on durability, reliability, and performance, Jay Steel’s Carbon Steel Male Branch Tee fittings are the ideal preference for each industrial and business program. Their excellent resistance to corrosion and high tensile energy make certain durability, making them a price-effective solution for complex piping networks.
P1 Table
| P1 Type | P1 Size | ||
|---|---|---|---|
| ML | Metric Ferrule | 1 | 1/16 |
| FL | Fractional Ferrule | 2 | 1/8 or 2mm |
| MT | Metric Tube | 3 | 3/16 or 3mm |
| FT | Fractional Tube | 4 | 1/4 or 4mm |
| 5 | 5/16 | ||
| 6 | 3/8 or 6mm | ||
| 8 | 1/2 or 8mm | ||
| 10 | 5/8 or 10mm | ||
| 12 | 3/4 or 12mm | ||
| 14 | 7/8 or 14mm | ||
| 15 | 15mm | ||
| 16 | 1 or 16mm | ||
| 18 | 1 1/8 or 18mm | ||
| 20 | 1 1/4 or 20mm | ||
| 22 | 22mm | ||
| 24 | 1 1/2 or 24mm | ||
| 25 | 25mm | ||
| 28 | 28mm | ||
| 30 | 30mm | ||
| 32 | 2 or 32mm | ||
| 38 | 38mm | ||
| 50 | 50mm | ||
P2 Table
P2 Type | P2 Size | ||
|---|---|---|---|
NS | NPT Thread | 5 | M5x0.8 or 5/16-24 or 5/16 |
ONS | O-ring with NPT Thread | 6 | M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8 |
RT | ISO Tapered Thread | 7 | 7/16-20 |
RS | ISO Parallel Thread (For RS Gasket) | 8 | M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2 |
RP | ISO Parallel Thread (For RP Gasket) | 9 | 9/12-18 |
RG | Female ISO Parallel (For RP Gasket) | 10 | M10 x 1 or 5/8 |
RJ | ISO Parallel Thread (For RJ Gasket) | 12 | M12x1.5 or 3/4-16 or 3/4 or |
BP | Male ISO Parallel Thread (For RG Gasket) | 14 | M14x1.4 or 7/8-14 |
PP | Positionable, ISO Straight Thread | 16 | M16x1.5 or 1 or 1xSCH80 or G1 |
ST | SAE/MS Straight Thread (Light Duty) | 17 | 1 1/16-12 |
SH | SAE/MS Straight Thread (Heavy Duty) | 18 | M18x1.5 |
OST | O-ring with SAE/MS Straight Thread | 19 | 1 5/16-12 |
AN | 37° Flare | 20 | M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2 |
MS | Metric Thread (For RG-M Gasket) | 21 | 1 5/8-12 |
MRS | Metric Thread (For RG-M Gasket) | 22 | M22x1.5 |
MST | O-ring with Metric Thread | 24 | M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2 |
TS | Fractional Tube Socket Weld | 26 | 1 5/8-12 |
PB | Pipe Butt Weld | 27 | M27x2 |
30 | 1 7/8-12 | ||
Phone
- 1234567895
- demo@gmail.com
Address
- Lorem ipsum dolor sit amet
Benefits:
- Durability: Made from high-grade carbon metal, ensuring long-term performance even in harsh environments.
- Corrosion Resistance: Excellent resistance to corrosion, extending the lifespan of the fittings.
- High Strength: Capable of withstanding high stress and temperature, making it appropriate for lots of packages.
- Versatility: Compatible with exclusive varieties of piping structures, providing flexibility in installation.
- Cost-Effective: Provides a reliable and durable answer, lowering renovation and substitute charges.
Grades Available:
Grade | Specification | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
ASTM A234 WPB | ASME B16.9 | 415 | 240 | 20 |
ASTM A105 | ASME B16.11 | 485 | 250 | 22 |
ASTM A350 LF2 | ASME B16.9 | 485 | 250 | 22 |
Types of the Product:
- Equal Male Branch Tee: Uniform dimensions across all three branches, suitable for trendy piping structures.
- Reducing Male Branch Tee: Differing diameters on branches, ideal for connecting pipes of varying sizes.
- Threaded Male Branch Tee: Threaded connections for smooth set up and upkeep.
- Welded Male Branch Tee: Welded joints for a stable and leak-evidence connection.
Industrial Application:
- Oil and Gas Industry: Used in pipelines for the transportation of oil, fuel, and other hydrocarbons.
- Chemical Processing: Suitable for dealing with numerous chemicals and reactive substances.
- Power Generation: Integral in structures that require high-pressure and excessive-temperature tolerance.
- Petrochemical Plants: Essential for distributing and controlling the flow of chemical substances.
- Water Treatment Facilities: Used in piping systems for the treatment and distribution of water.
Testing:
Jay Steel ensures that every Carbon Steel Male Branch Tee undergoes rigorous checking out to satisfy enterprise standards and specifications. The trying-out processes consist of:
- Hydrostatic Testing: To make certain the best can withstand excessive strain without leaking.
- Non-Destructive Testing (NDT): Methods that include ultrasonic and radiographic testing to hit upon any inner flaws.
- Mechanical Testing: Tensile and hardness tests to verify fabric power.
- Chemical Analysis: Ensuring the composition meets the required specifications for carbon steel.
Why Choose Jay Steel:
- Expertise: Jay Steel has years of experience in manufacturing super tube fittings, ensuring superior product understanding and technical talent.
- Quality Assurance: Committed to retaining the highest requirements of first-class, each product is subjected to stringent testing and great manipulation strategies.
- Customer Support: Dedicated customer support crew to assist with product choice, technical queries, and after-income help.
- Global Reach: Serving diverse clients worldwide, Jay Steel is a trusted name within the enterprise, recognized for its reliability and excellence.
- Innovative Solutions: Continuously investing in studies and improvement to offer superior and progressive answers for all your piping desires.
Choose Jay Steel for your Carbon Steel Male Branch Tee requirements and experience unprecedented high-quality and carrier.
