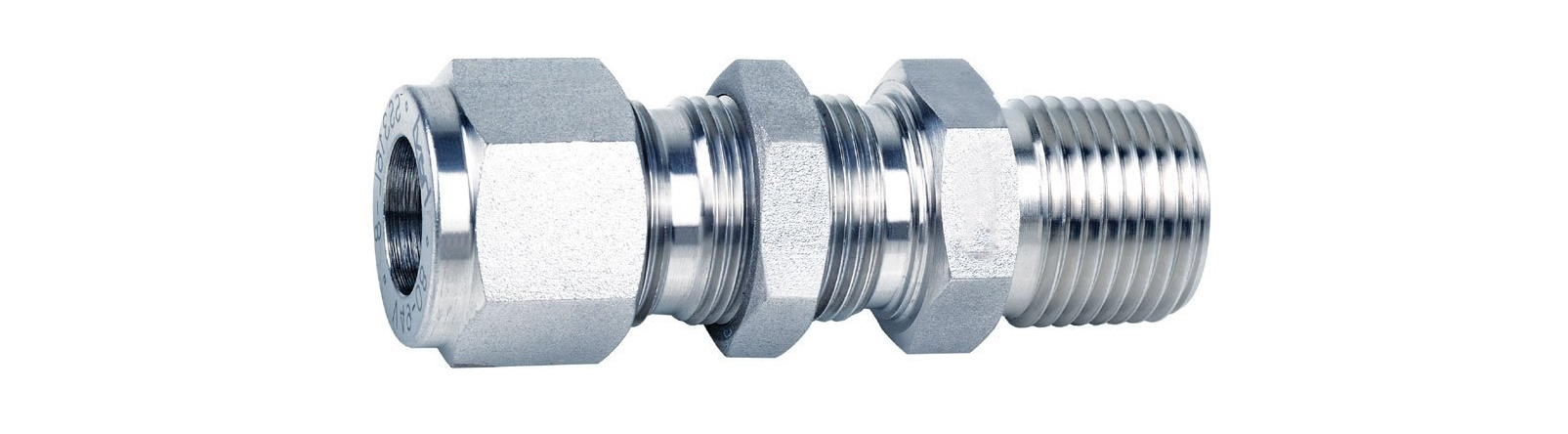

Carbon Steel Bulkhead Male Connector

Welcome to Jay Steel, your trusted partner in high-quality tube fittings. As a leading manufacturer in the industry, Jay Steel is dedicated to delivering superior products designed to meet the demands of various industrial applications. Our Carbon Steel Bulkhead Male Connectors are engineered with precision and manufactured to the highest standards to ensure reliability, durability, and optimal performance. These connectors are essential components in systems where a secure and leak-proof connection through a panel or bulkhead is required. At Jay Steel, we pride ourselves on our commitment to excellence, innovation, and customer satisfaction.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Jay Steel’s Carbon Steel Bulkhead Male Connectors offer numerous benefits:

Superior Strength: High tensile strength makes them ideal for high-pressure applications.
Durability: Excellent resistance to wear, corrosion, and mechanical stress, ensuring long-lasting performance.
Cost-Efficiency: Provides a durable and economical solution for industrial applications.
Versatility: Suitable for a wide range of applications, providing flexibility in various industrial settings.
Easy Installation: Designed for ease of installation, reducing downtime and labor costs.

Grades Available:

Jay Steel offers Carbon Steel Bulkhead Male Connectors in the following grades:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
A105	Carbon Steel	485	250	22
A350 LF2	Low-Temperature Carbon Steel	485	250	22

Types of the Product:

Our Carbon Steel Bulkhead Male Connectors come in various types, including:

Straight Bulkhead Male Connectors
Bulkhead Male Elbow Connectors
Bulkhead Male Branch Tee Connectors
Bulkhead Male Run Tee Connectors

Industrial Application:

Jay Steel’s Carbon Steel Bulkhead Male Connectors are utilized across various industries, such as:

Oil and Gas: Essential for pipelines and drilling rigs requiring high-pressure and durable connections.
Petrochemical: Used in chemical processing plants where robust and reliable fittings are crucial.
Power Generation: Ideal for steam and water lines in power plants.
Construction: Suitable for construction machinery and structural applications.
Automotive: Used in high-performance automotive systems for secure and reliable connections.

Testing:

To ensure the highest quality and performance, Jay Steel conducts extensive testing on all Carbon Steel Bulkhead Male Connectors:

Dimensional Inspection: Ensures accurate dimensions and adherence to specifications.
Material Analysis: Confirms the correct material composition and quality.
Pressure Testing: Validates performance under high-pressure conditions.
Non-Destructive Testing (NDT): Detects any surface or subsurface flaws to guarantee integrity.

Why Choose Jay Steel:

Jay Steel is the preferred supplier of Carbon Steel Bulkhead Male Connectors for several reasons:

Uncompromised Quality: We are committed to delivering products that meet the highest quality standards.
Technical Expertise: Our extensive industry knowledge and expertise enable us to provide innovative solutions.
Customer Focus: We are dedicated to understanding and fulfilling customer requirements with tailored solutions.
Timely Delivery: Our efficient global supply chain ensures timely delivery of products.
Competitive Pricing: We offer top-quality products at competitive prices, providing excellent value.

Choose Jay Steel for your Carbon Steel Bulkhead Male Connector needs and experience unmatched quality, reliability, and service excellence. Contact us today to discuss your requirements and discover how we can support your industrial applications effectively.
