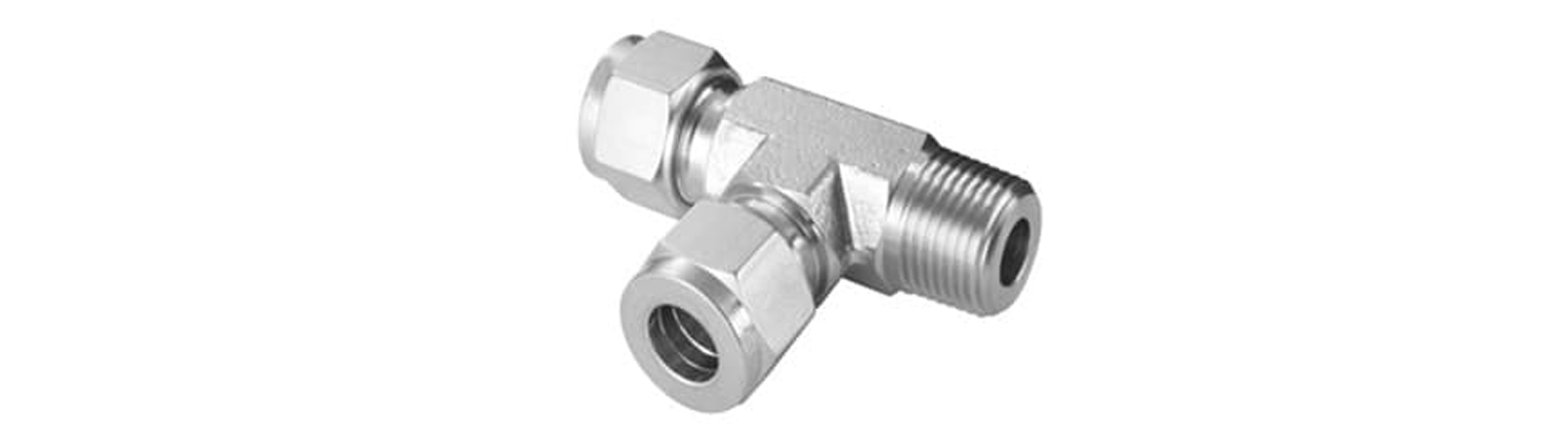

Alloy 20 Male Run Tee

Welcome to Jay Steel, the leading manufacturer of high-quality tube fittings. Our Alloy 20 Male Run Tee is designed to meet the rigorous demands of various industrial applications. Alloy 20, a nickel-iron-chromium alloy with the addition of molybdenum and copper, offers excellent resistance to pitting and chloride ion corrosion, making it ideal for handling sulfuric acid and other harsh environments. Jay Steel’s commitment to precision engineering and superior quality ensures that our Alloy 20 Male Run Tee fittings deliver unmatched performance and reliability. Trust Jay Steel for your tube fitting needs and experience the difference in quality and service.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

The Alloy 20 Male Run Tee fittings from Jay Steel offer numerous benefits:

Exceptional Corrosion Resistance: Designed to withstand highly corrosive environments, particularly sulfuric acid.
High Strength and Durability: Capable of enduring high pressures and temperatures, ensuring long-term service life.
Versatile Applications: Suitable for a wide range of industrial uses, providing flexibility and reliability.
Leak-Proof Connections: Precision-engineered to ensure secure and leak-proof connections.
Cost-Effective: Reduces maintenance and replacement costs due to its robust and long-lasting nature.

Grades Available:

Jay Steel offers Alloy 20 Male Run Tee fittings in various grades to meet specific requirements. Below is a specification table for each grade:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Alloy 20	32-38% Ni, 19-21% Cr, 2-3% Mo, 3.5-4.5% Cu	620	300	30

Types of the Product:

Jay Steel provides different types of Alloy 20 Male Run Tee fittings to cater to various industrial needs:

Standard Male Run Tee: Ideal for general industrial applications requiring reliable branching connections.
High-Pressure Male Run Tee: Designed to perform in high-pressure environments, ensuring safety and durability.
Compact Male Run Tee: Suitable for space-constrained applications, providing robust performance in a smaller form factor.
High-Temperature Male Run Tee: Maintains performance in high-temperature conditions, ensuring stability and reliability.

Industrial Application:

The Alloy 20 Male Run Tee fittings from Jay Steel are utilized across a broad spectrum of industries, including:

Chemical Processing: Reliable fittings for systems handling aggressive chemicals and acids.
Petrochemical: Durable and corrosion-resistant fittings for pipelines and processing facilities.
Pharmaceuticals: Hygienic and secure connections essential for controlled environments.
Food and Beverage: Safe and efficient fittings for food processing and handling systems.
Water Treatment: Corrosion-resistant fittings ideal for water and wastewater treatment systems.

Testing:

Jay Steel ensures the highest quality and performance of our Alloy 20 Male Run Tee fittings through comprehensive testing procedures:

Material Testing: Verifying the high-grade Alloy 20 material to meet industry standards.
Dimensional Inspection: Ensuring precise dimensions for accurate and reliable fittings.
Pressure Testing: Confirming the fittings’ performance under various pressure conditions.
Corrosion Testing: Assessing resistance to corrosion to guarantee long-term durability.

Why Choose Jay Steel:

Uncompromising Quality: Adhering to stringent quality standards, ensuring our products meet and exceed customer expectations.
Industry Expertise: Leveraging extensive experience to provide innovative and tailored solutions for various applications.
Customer-Centric Approach: Prioritizing customer satisfaction with personalized support and services.
Global Reach: A robust supply chain that ensures timely delivery and consistent product quality worldwide.
Competitive Pricing: Offering high-quality products at competitive prices, providing excellent value for your investment.

Choose Jay Steel for your Alloy 20 Male Run Tee fittings and experience the unparalleled quality, reliability, and service that distinguish us in the industry. Trust Jay Steel to deliver fittings that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations.
