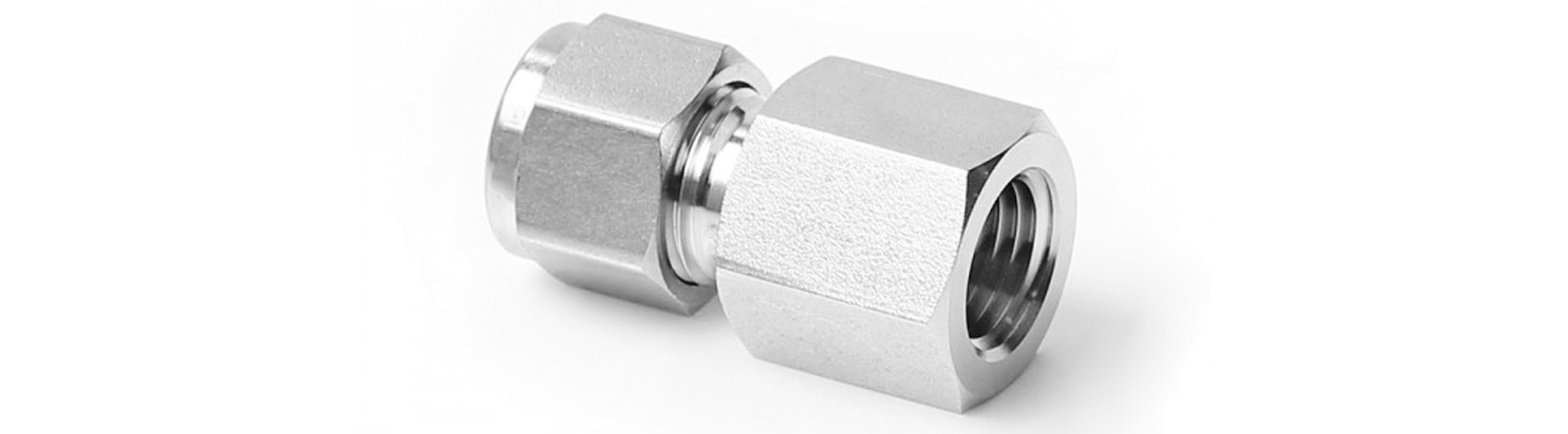

Alloy 20 Female Connector

Welcome to Jay Steel, a premier manufacturer of high-quality tube fittings. Our Alloy 20 Female Connectors are engineered to provide exceptional performance and durability in the most demanding industrial environments. Alloy 20 is renowned for its superior corrosion resistance and robust mechanical properties, making it an ideal material for connectors used in harsh conditions. At Jay Steel, we combine advanced manufacturing techniques with stringent quality control to ensure that every Alloy 20 Female Connector meets the highest standards of reliability and precision. Trust Jay Steel for products that enhance the efficiency and safety of your operations.

P1 Table

P1 Type		P1 Size
ML	Metric Ferrule	1	1/16
FL	Fractional Ferrule	2	1/8 or 2mm
MT	Metric Tube	3	3/16 or 3mm
FT	Fractional Tube	4	1/4 or 4mm
		5	5/16
		6	3/8 or 6mm
		8	1/2 or 8mm
		10	5/8 or 10mm
		12	3/4 or 12mm
		14	7/8 or 14mm
		15	15mm
		16	1 or 16mm
		18	1 1/8 or 18mm
		20	1 1/4 or 20mm
		22	22mm
		24	1 1/2 or 24mm
		25	25mm
		28	28mm
		30	30mm
		32	2 or 32mm
		38	38mm
		50	50mm

P2 Table

P2 Type		P2 Size
NS	NPT Thread	5	M5x0.8 or 5/16-24 or 5/16
ONS	O-ring with NPT Thread	6	M6x1 or ⅜-24 or 3/8 or 3/8xSCH80 or G3/8
RT	ISO Tapered Thread	7	7/16-20
RS	ISO Parallel Thread (For RS Gasket)	8	M8x1 or 1/2-20 or 1/2 or 1/2xSCH80 or G1/2
RP	ISO Parallel Thread (For RP Gasket)	9	9/12-18
RG	Female ISO Parallel (For RP Gasket)	10	M10 x 1 or 5/8
RJ	ISO Parallel Thread (For RJ Gasket)	12	M12x1.5 or 3/4-16 or 3/4 or
BP	Male ISO Parallel Thread (For RG Gasket)	14	M14x1.4 or 7/8-14
PP	Positionable, ISO Straight Thread	16	M16x1.5 or 1 or 1xSCH80 or G1
ST	SAE/MS Straight Thread (Light Duty)	17	1 1/16-12
SH	SAE/MS Straight Thread (Heavy Duty)	18	M18x1.5
OST	O-ring with SAE/MS Straight Thread	19	1 5/16-12
AN	37° Flare	20	M20x1.5 or 1 1/4 or 1 1/4xSCH80 or G1 1/2
MS	Metric Thread (For RG-M Gasket)	21	1 5/8-12
MRS	Metric Thread (For RG-M Gasket)	22	M22x1.5
MST	O-ring with Metric Thread	24	M24x1.5 or 1 1/2 or 1 1/2xSCH80 or G1 1/2
TS	Fractional Tube Socket Weld	26	1 5/8-12
PB	Pipe Butt Weld	27	M27x2
		30	1 7/8-12

Phone

Email

Address

Benefits:

Choosing Alloy 20 Female Connectors from Jay Steel offers numerous advantages:

Superior Corrosion Resistance: Alloy 20 excels in resisting corrosion from a wide range of chemicals, including sulfuric acid, making it ideal for challenging environments.
High Strength and Durability: These connectors maintain their mechanical integrity under high stress and extreme temperatures, ensuring long-term reliability.
Versatile Applications: Suitable for various industries, Alloy 20 Female Connectors can handle diverse chemical processes and conditions.
Easy Installation: Designed for straightforward integration, these connectors allow for quick, secure connections, minimizing downtime and installation costs.
Reliable Performance: Consistent performance in harsh environments ensures operational efficiency and safety.

Grades Available:

Jay Steel offers Alloy 20 Female Connectors in different grades to suit specific industrial needs. Below are the specifications for each grade:

Grade	Material Composition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Alloy 20	32-38% Ni, 19-21% Cr, 2-3% Mo, 3.5-4.5% Cu	620	300	30

Types of the Product:

Jay Steel provides a variety of Alloy 20 Female Connectors to meet different application requirements:

Standard Female Connector: Ideal for general-purpose use, offering reliable and secure connections in various systems.
High-Pressure Female Connector: Designed to withstand high-pressure environments, ensuring safety and reliability.
Compact Female Connector: For applications where space is limited, these connectors offer the same robust performance in a smaller form factor.
High-Temperature Female Connector: Engineered to perform under extreme temperatures, maintaining integrity and performance.

Industrial Application:

Alloy 20 Female Connectors from Jay Steel are utilized in a wide range of industries, including:

Chemical Processing: Ensuring reliable connections in systems handling corrosive chemicals and high-temperature processes.
Petrochemical: Providing robust connectors for pipelines and processing facilities dealing with aggressive substances.
Pharmaceuticals: Maintaining hygienic and reliable connections in sterile and controlled environments.
Food and Beverage: Ensuring safe and efficient connections in processing and handling systems.
Water Treatment: Facilitating durable and corrosion-resistant connections in water and wastewater treatment systems.

Testing:

At Jay Steel, we ensure the quality and performance of our Alloy 20 Female Connectors through comprehensive testing procedures:

Material Testing: Ensuring the use of high-grade Alloy 20 to meet industry standards and specifications.
Dimensional Inspection: Verifying precise dimensions for accurate and secure fittings.
Pressure Testing: Confirming reliable performance under various pressure conditions.
Corrosion Testing: Assessing resistance to corrosion to guarantee long-term durability in harsh environments.

Why Choose Jay Steel:

Commitment to Quality: We adhere to the highest quality standards, ensuring our products consistently meet and exceed customer expectations.
Expertise and Experience: With extensive industry experience, we provide reliable and innovative solutions tailored to your specific needs.
Customer-Centric Approach: We prioritize customer satisfaction, offering personalized support and services to address your unique requirements.
Global Reach: As a leading manufacturer, we maintain a robust global supply chain, ensuring timely delivery and consistent product quality.
Competitive Pricing: We offer premium-quality products at competitive prices, ensuring excellent value for your investment.

Choose Jay Steel for your Alloy 20 Female Connector needs and experience unparalleled quality, reliability, and service. Trust us to deliver products that meet the highest standards of performance and durability, enhancing the efficiency and safety of your industrial operations.
